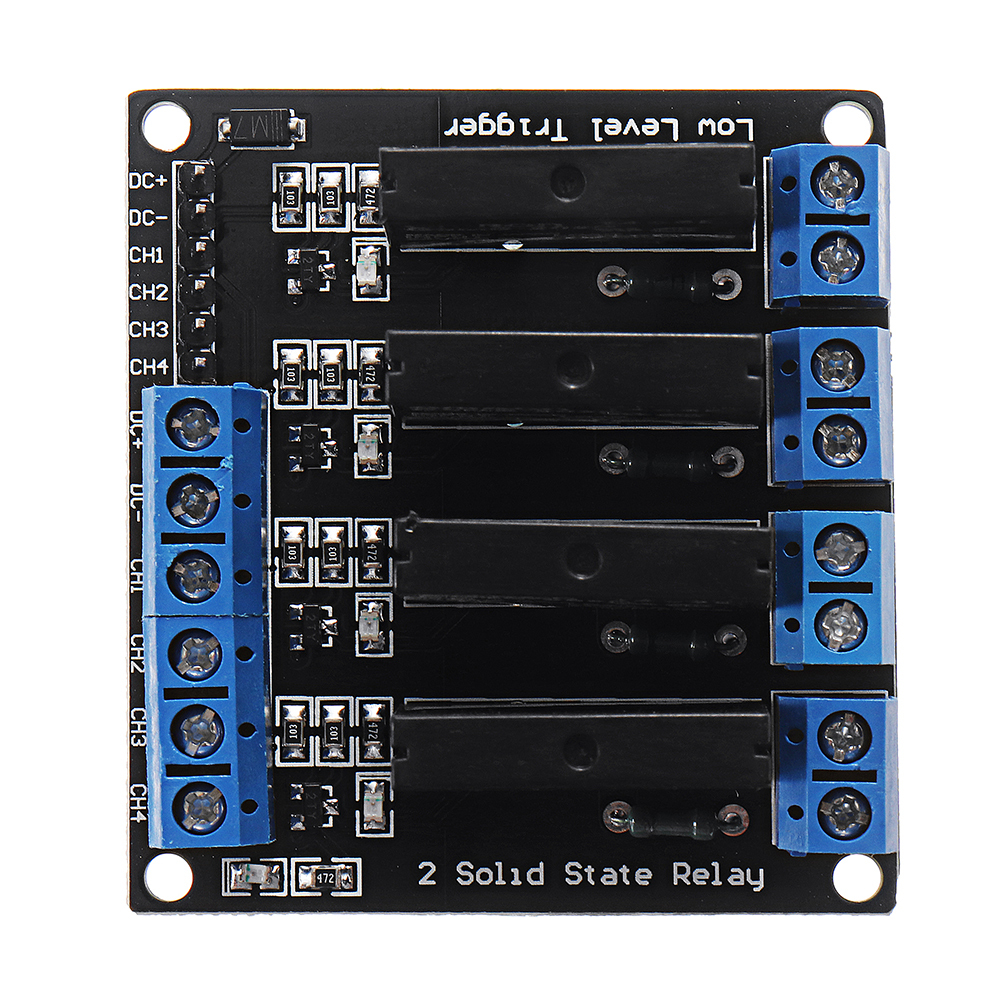

4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino - products that work with official Arduino boards

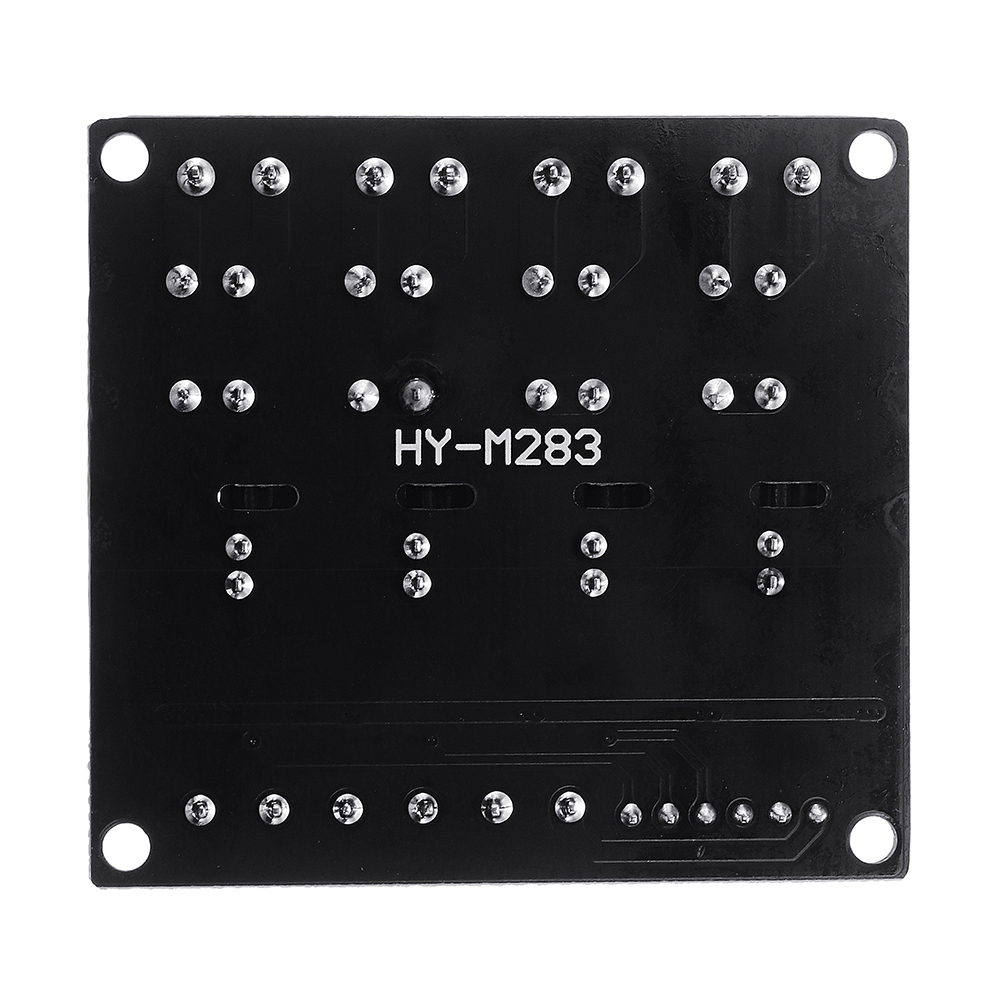

4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino - products that work with official Arduino boards - Image 2

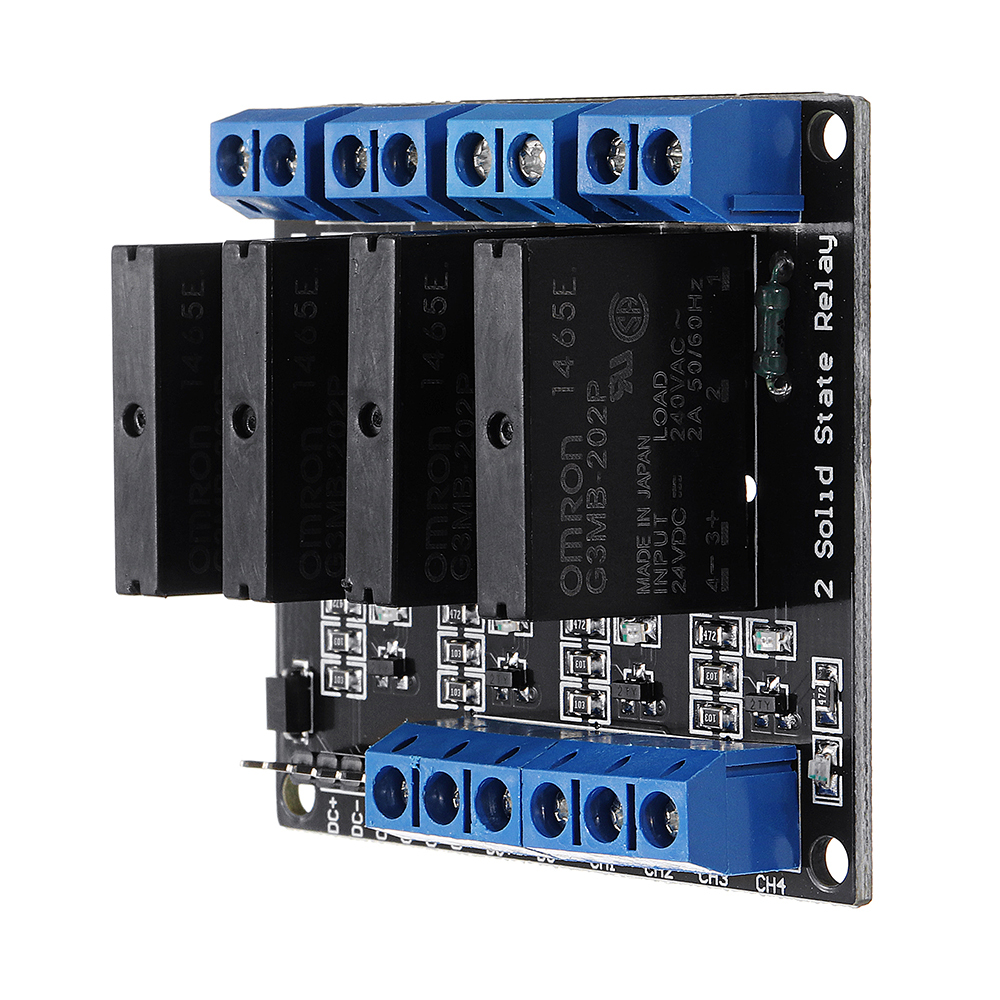

4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino - products that work with official Arduino boards - Image 3

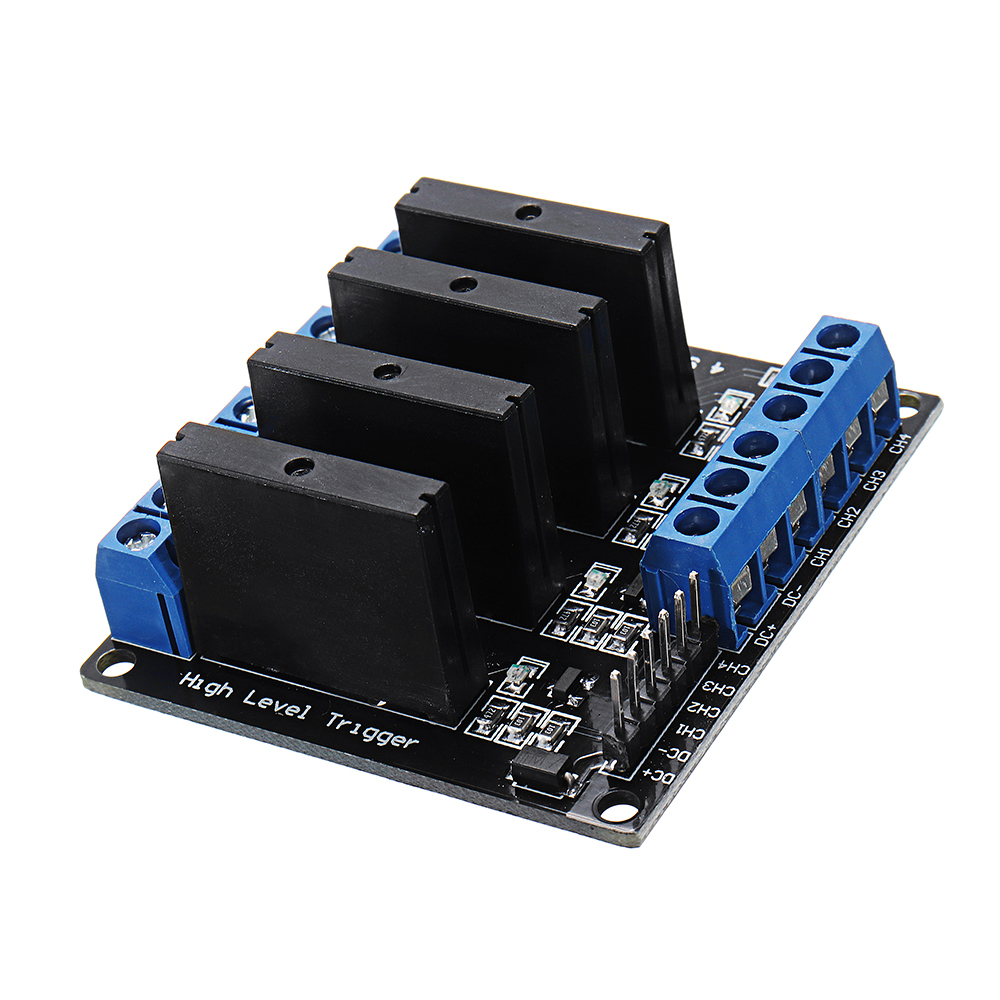

4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino - products that work with official Arduino boards - Image 4
4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino - products that work with official Arduino boards - Image 5
4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino - products that work with official Arduino boards - Image 6
4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino - products that work with official Arduino boards - Image 7

4 Channel DC 24V Relay Module Solid State High and low Level Trigger 240V2A Geekcreit for Arduino – products that work with official Arduino boards

is available on purchases between $10 and $2,000 learn more

This product is currently out of stock and unavailable.

Add to Wishlist
Add to Wishlist
SKU: C122-1347877 Category:

Description

Specification:
Input Power Supply: 24V DC
Load Voltage: AC240V 2A
Maximum operating current: 48.8mA
Trigger mode: high level / low level
Input control signal voltage:
(0-2.5V low state relay OFF)
(3.3-5V state high relay ON)
Blue KF301 terminal connection control line is more convenient.
Module interface:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay Module signal triggering end (Low level trigger effective)
Note: Power must be DC voltage and need to be consistent with the voltage relay
Package Included:
1x High Level / Low Level  Relay

Additional information

Weight 0.04 kg
MPN

1347877
Mode

56431 HIGH LEVEL
