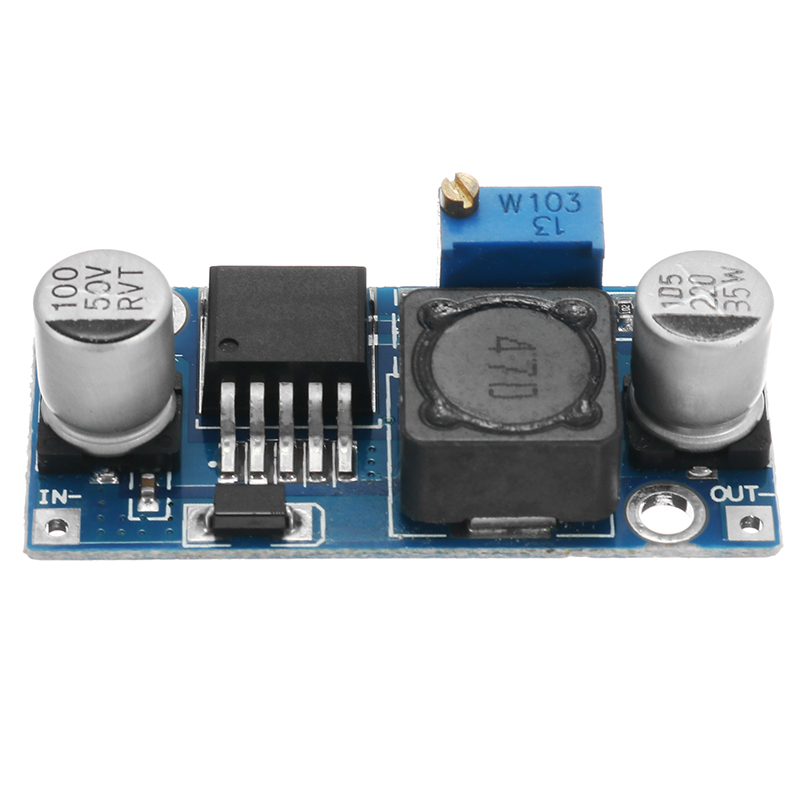

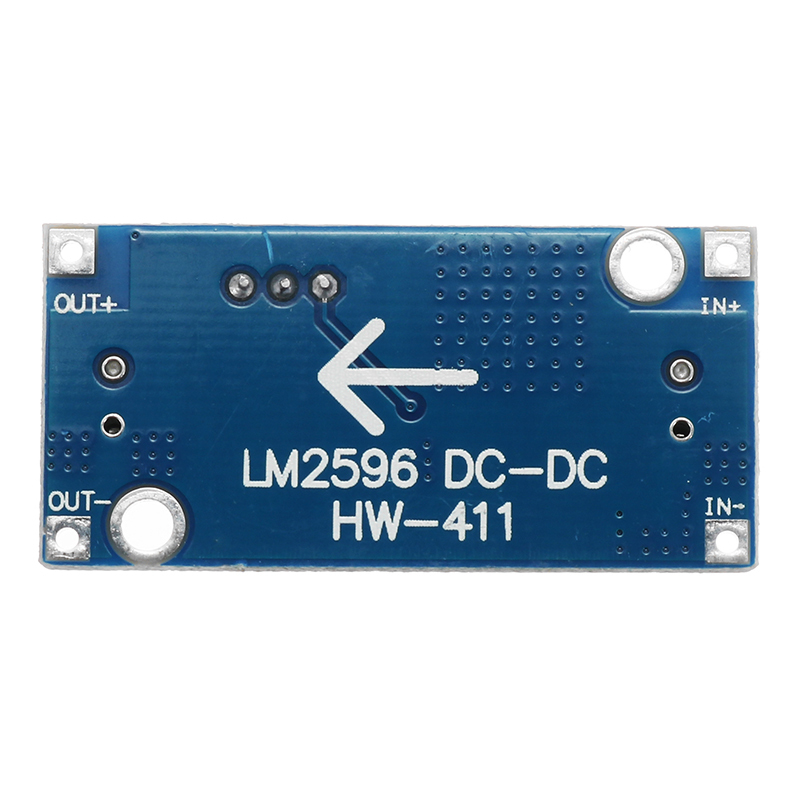

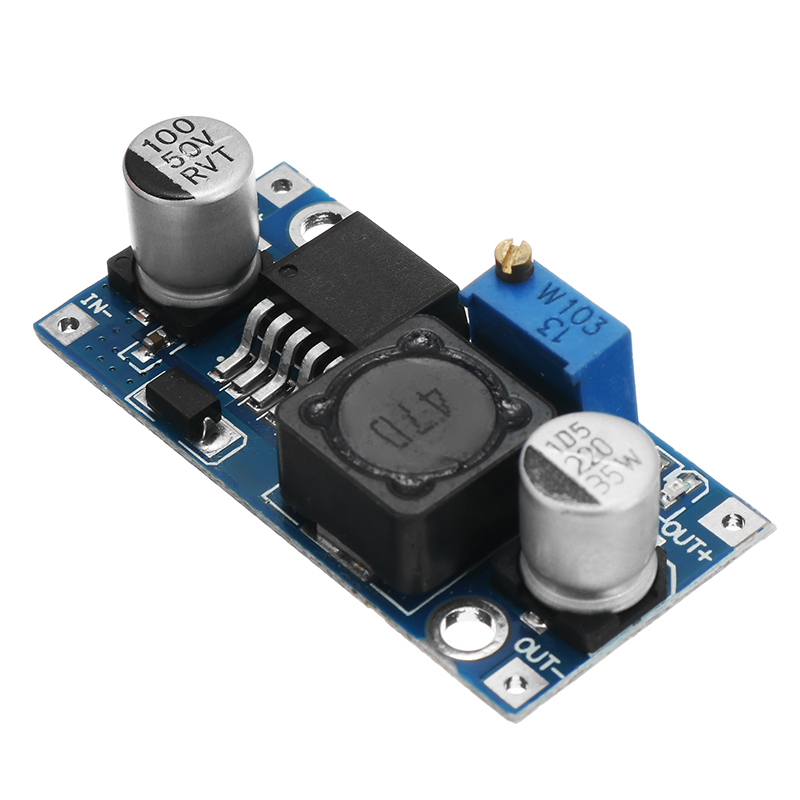

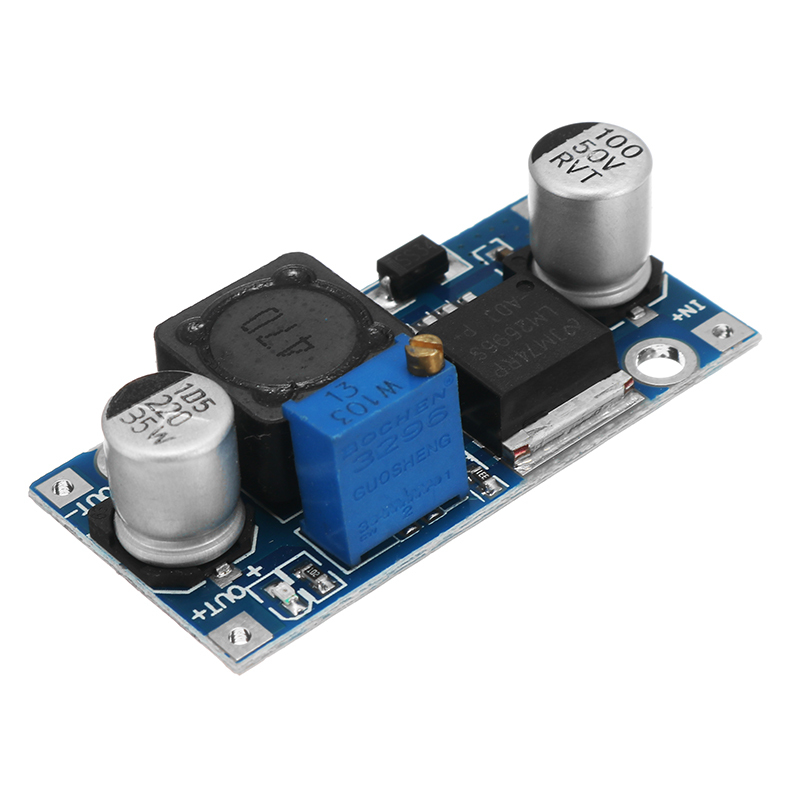

3Pcs LM2596S DC-DC Step Down Power Module 2A Adjustable Buck Module Super LM2576

or 6 weekly interest-free payments from $2.55 with Laybuy

or 4 payments of $3.49 with Wizit learn more

$13.94 AUD

Estimated delivery between Monday 18. November - Monday 25. November
Add to Wishlist
Add to Wishlist
SKU: C122-1249925 Category:

Description

Description: 1, Input voltage: 3.2-35VAdjustment method: the first to connect the power supply (3.2-35V) and then use a multimeter to monitor the output voltageand adjust the potentiometer (generally rise the voltage in Clockwise, reverse to buck)2, Output voltage: 1.25-30V continuously adjustable (recommended no-load debugging)3, Output current: rated current 1A, the maximum 2A (need to add heat sink), if the output power is greater than 15W,it is recommended to add heat sink4, Conversion efficiency: up to 92% (the higher the output voltage, the higher the efficiency)5, Static power consumption is only about 3mA.6, Because it is a step-down module, in order to ensure stable output, please maintain a minimum of 1.5V pressure.Package included:3 x LM2596S DC-DC Step-down Power Module









Additional information

Weight 0.03 kg
MPN

1249925
