3Pcs KA2284 LED Level Indicator Module Audio Level Indicator Kit Electronic Production Kit

or 6 weekly interest-free payments from $1.14 with Laybuy

is available on purchases between $10 and $2,000 learn more

$6.25 AUD

In stock

Refund and Returns Policy
Estimated delivery between Wednesday 6. November - Wednesday 13. November
Add to Wishlist
Add to Wishlist
SKU: 16399 Category: Tags: , , , , , , , , , ,

Description

Note: This is a DIY kit, you need to assembly it, we supply schematic diagram only.

Feature:


Constant current output
Wide operating voltage: 3.5V – 12V
ALC circuits do not need to connect diodes or transistors
The brightness level can be adjusted
The circuit board adopts military grade 1.6MM FR4 sheet
PCB dimensions: 40mm x 19mm
Quantity: 3 pack

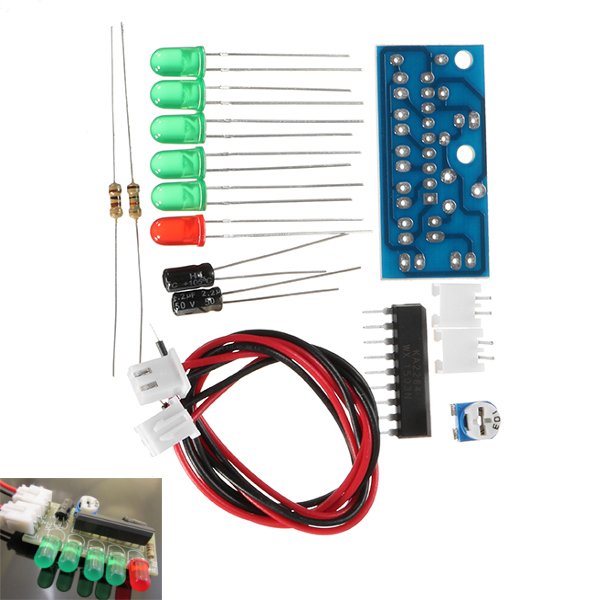

Package includes:

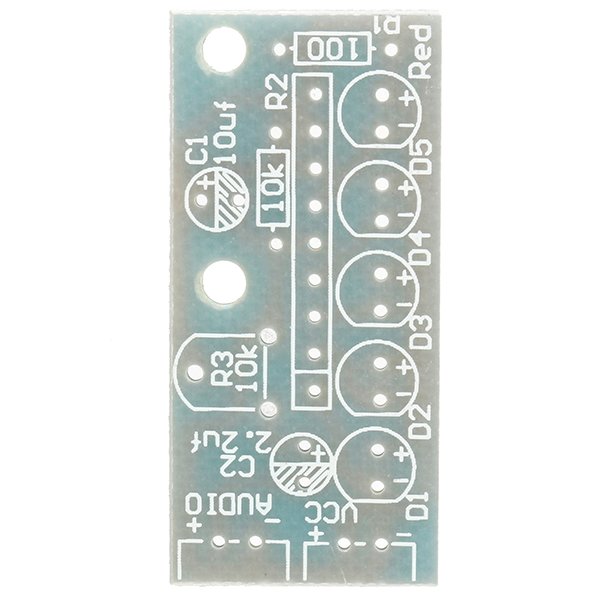

1 x PCB board
2 x XH2.54-2P curved seat
2 x XH2.54-2P line

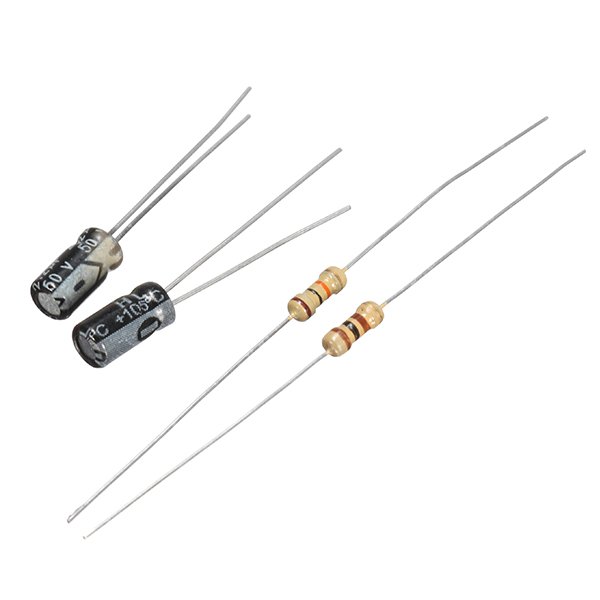

1 x 100 ohm resistance
1 x 10K resistance
1 x 2.2UF electrolytic capacitor
1 x 10UF electrolytic capacitor

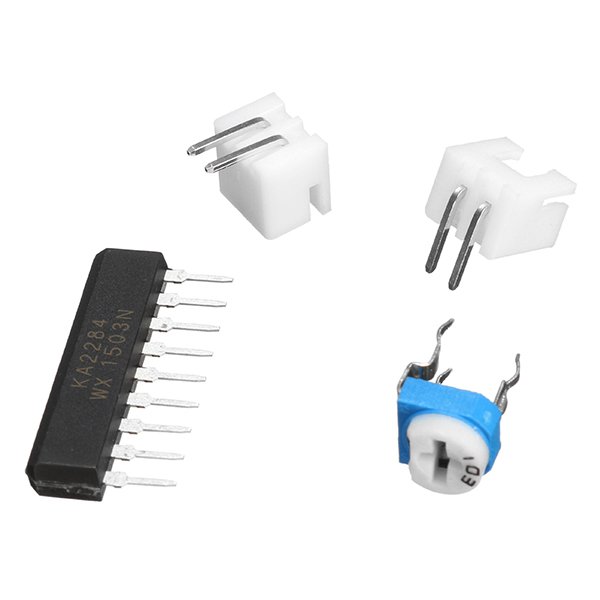

1 x 103 blue and white potentiometer
1 x KA2284 chip
5 x 5MM green to green LED
1 x 5MM red to red LED
