3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit
3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit - Image 2
3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit - Image 3
3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit - Image 4
3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit - Image 5
3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit - Image 6

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit

is available on purchases between $10 and $2,000 learn more

$8.78 AUD

Only 2 left in stock

Refund and Returns Policy
Estimated delivery between Tuesday 29. April - Tuesday 6. May
Add to Wishlist
Add to Wishlist
SKU: 16766 Category: Tags: , , , , , , , , , ,

Description

Note: This is a DIY kit, you need to assemble it, no instruction supply.

Sepecification:


Input voltage: AC 12-17V (No direction)
Output voltage: DC 8-14V (adjustable)
Output current: 500mA
Board size: 4.9 * 3.5cm
Quantity: 3pcs

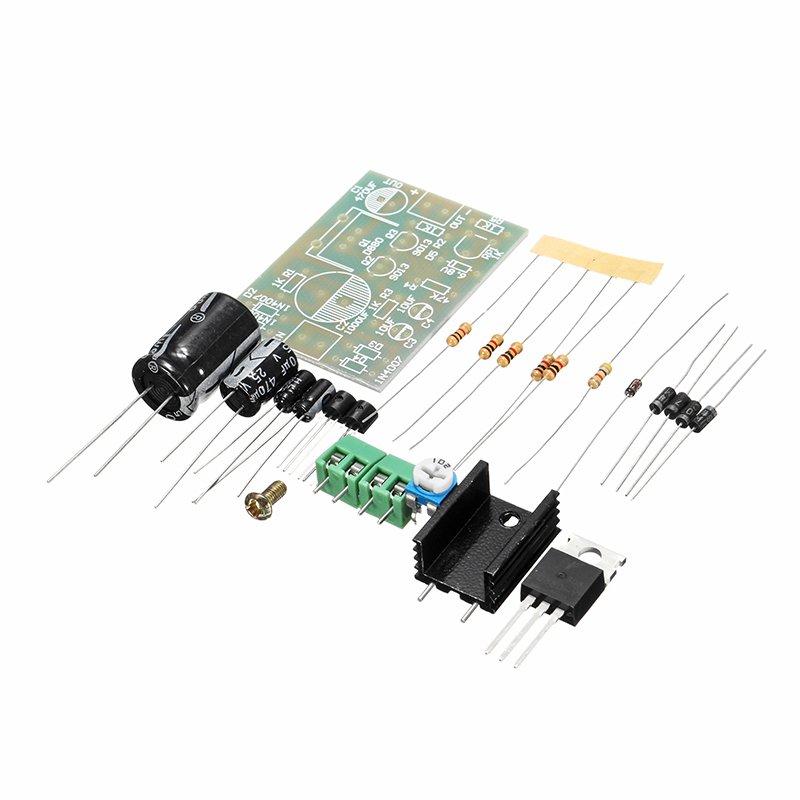

Package includes:

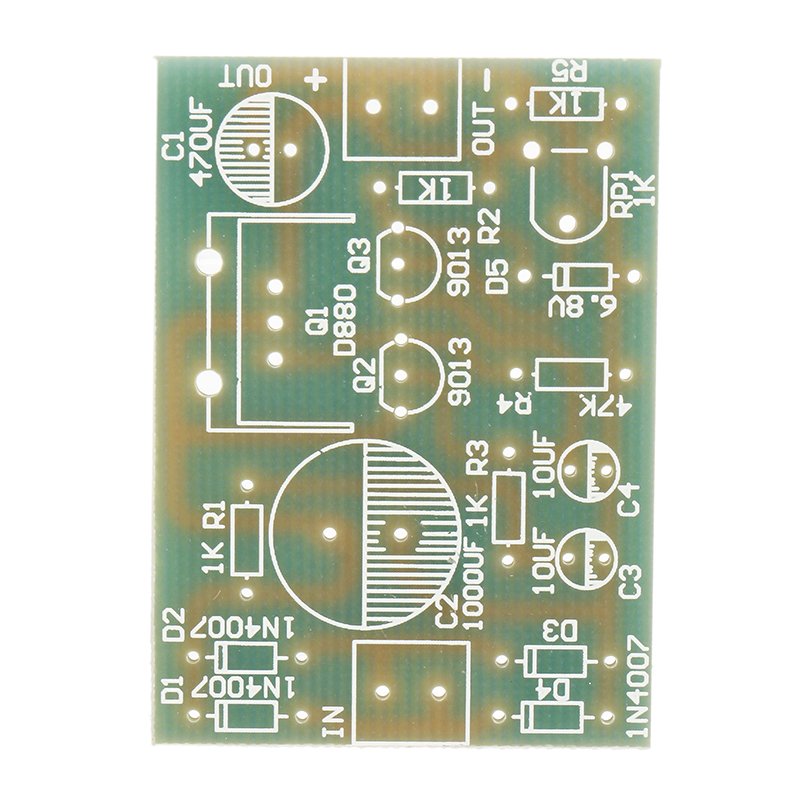

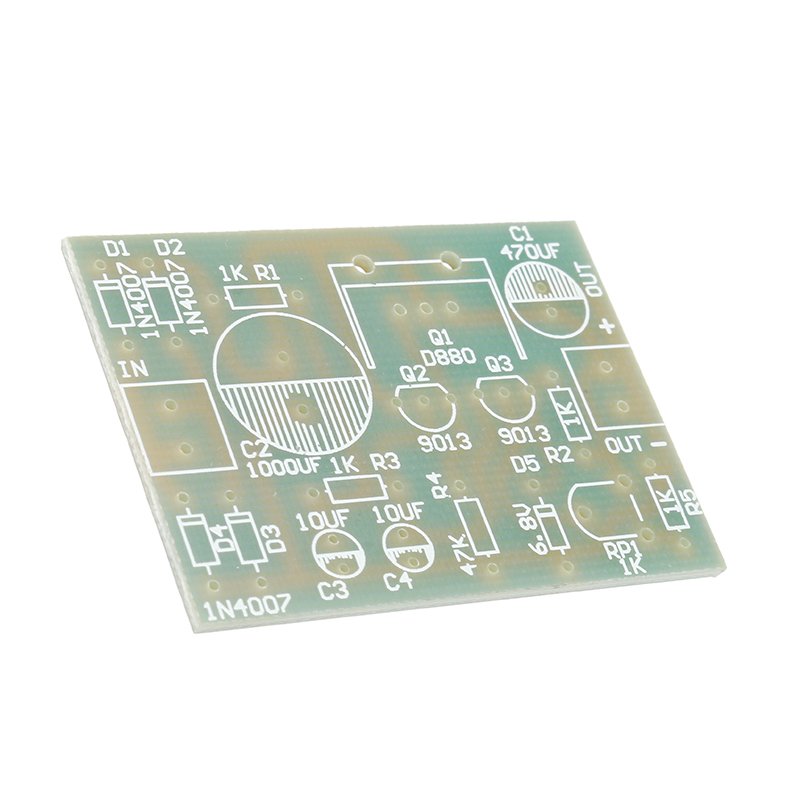

1 x PCB board
2 x 9013 transistor

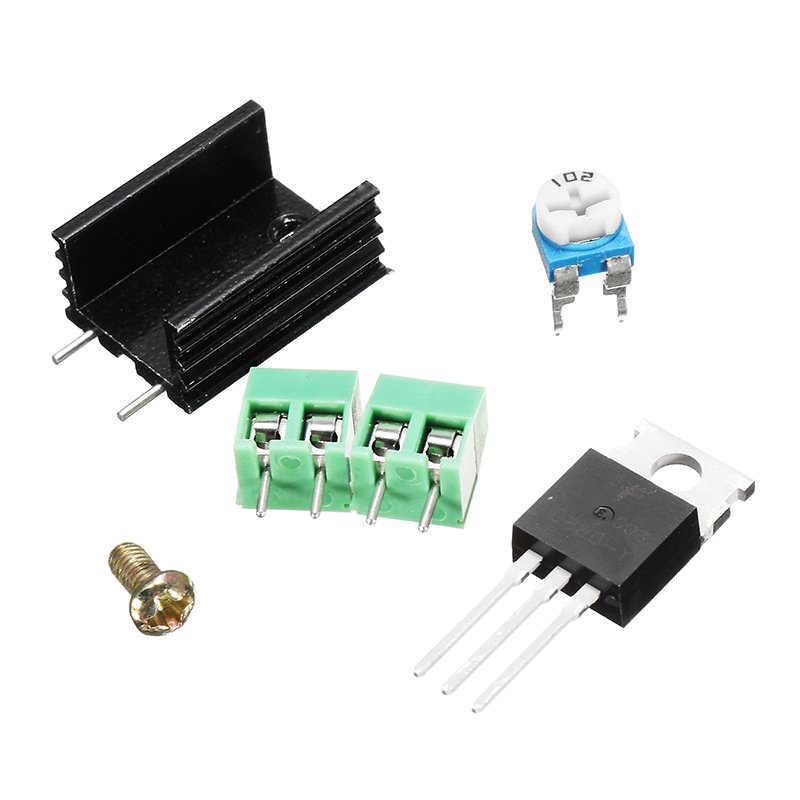

1 x D880 transistor
1 x 15 * 10 * 20mm heatsink
1 x M3 * 6 screws
2 x 3.96-2P pillars
4 x 1N4007 diode
1 x 0.5W 6.8V Zener diode
1 x 1000UF50V electrolytic capacitor
1 x 470UF25V electrolytic capacitor
2 x 10UF25V electrolytic capacitor
5 x 1K resistor
1 x 47K resistor
1 x 1K blue and white potentiometer


3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 1

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 2

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 3

Test, for reference only:

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 4

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 5

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 6

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 7

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 8

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 9

3Pcs DIY D880 Transistor Series Power Supply Regulator Module Board Kit 10
