Description

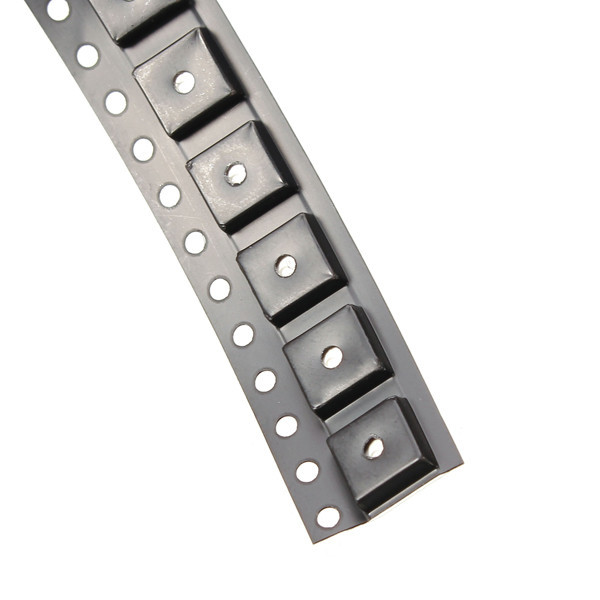

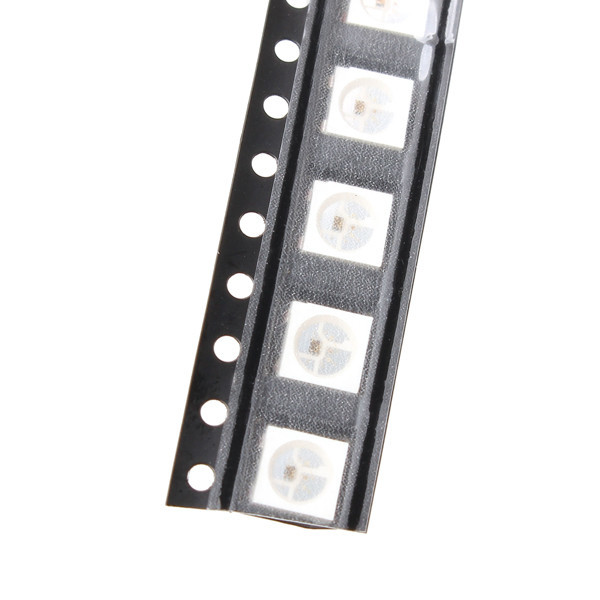

Features:● Smart reverse polarity protection, reverse power supply will not damage the IC.● IC control circuit and LED point light source share a power supply.● control circuit and RGB chip integrated in a 5050 package components, constitute a complete external control pixel.● Built-in signal shaping circuit, every pixel shaping and then output after receiving the signal waveform shaping to ensure that the waveform distortion   will not be accumulated line.● Built-in power-on reset and power-down reset circuit.● Three primary colors of each pixel can achieve 256 levels of brightness display, complete 16777216 colors of the true color display, scanning    frequency of not less than 400Hz/s.● Serial cascade interface, can complete the data reception and decoding through a signal cable.● No need adding any circuit when any two-point transmission distance is no more than 5 meters .● When the refresh rate is 30 frames per second, the concatenation number is not less than 1024 points.● Data transmission speed up to 800Kbps.● The color of the light is highly consistent and cost-effective.Application:● LED full-color light-emitting string lights, LED full-color module, LED full-color flexible strip light bar, LED guardrail tube.● LED point light source, LED pixel screen, LED profiled screen, all kinds of electronic products, electrical equipment Marquee.Package included:30 x 4Pin Full Color Drive LED Light
