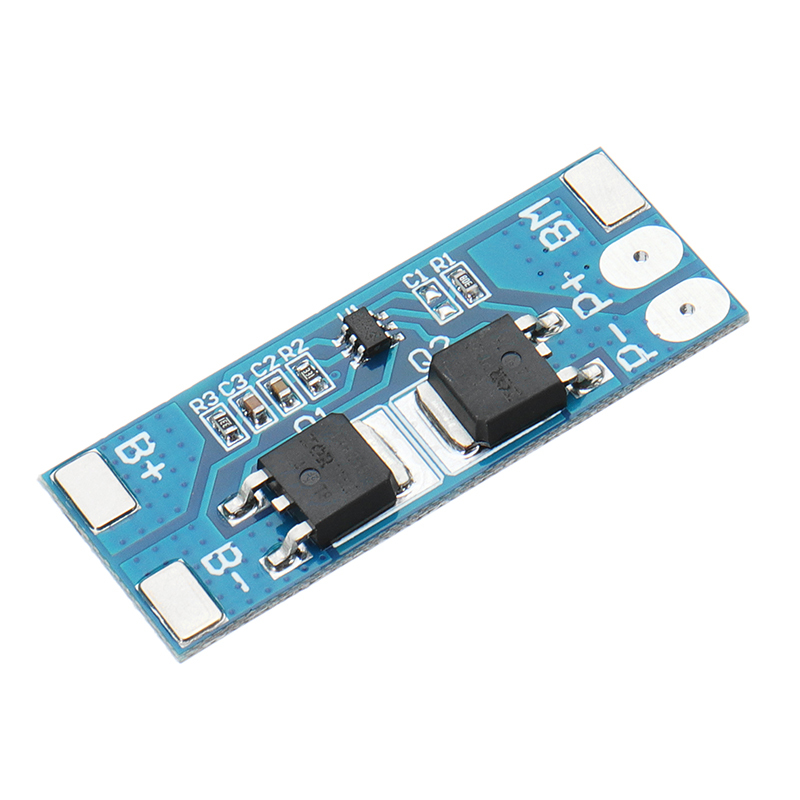

2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function - Image 2
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function - Image 3
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function - Image 4
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function - Image 5
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function - Image 6
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function - Image 7

2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function

or 6 weekly interest-free payments from $1.27 with Laybuy

is available on purchases between $10 and $2,000 learn more

$6.94 AUD

In stock

Refund and Returns Policy
Estimated delivery between Sunday 29. December - Sunday 5. January
Add to Wishlist
Add to Wishlist
SKU: C122-1259709 Category:

Description

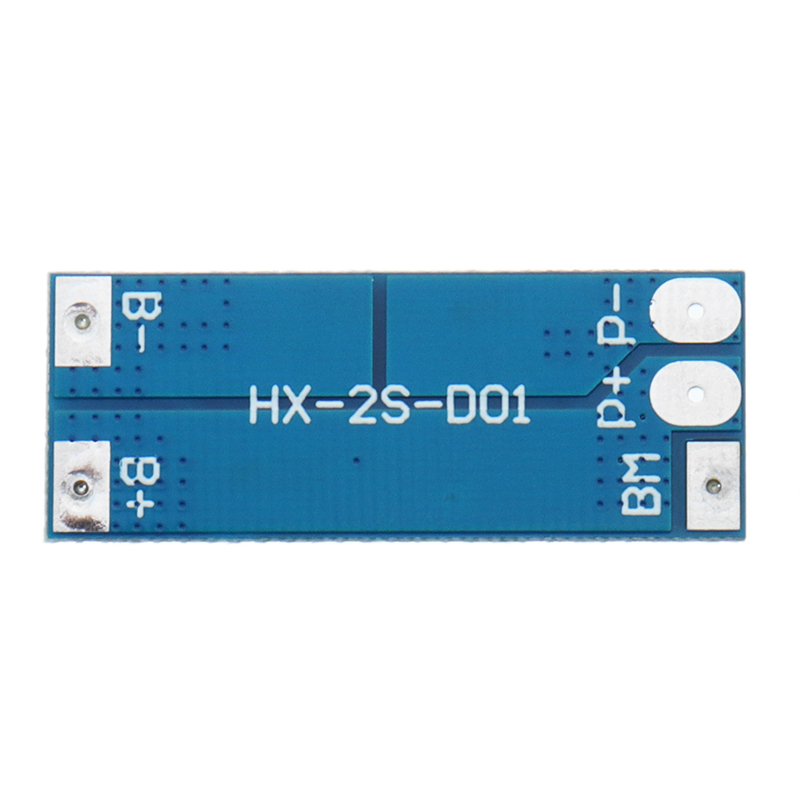

Description:Model: HX-2S-01Type: Voltage RegulatorDissipation Power: 50WSupply Voltage: 8.4VApplication: 18650 lithium battery

Overcharge voltage range: 4.25-4.35v±0.05V
Over-discharge voltage range: 2.5-3.0v±0.05V
Working current: 0-5A
Working temperature: -40—+50 °C
Instantaneous current: 6-7A
Storage conditions: -40– +80 ° C
Quiescent current: less than 5uA
Effective life: more than 50,000 hours
Internal resistance: less than 300mΩ

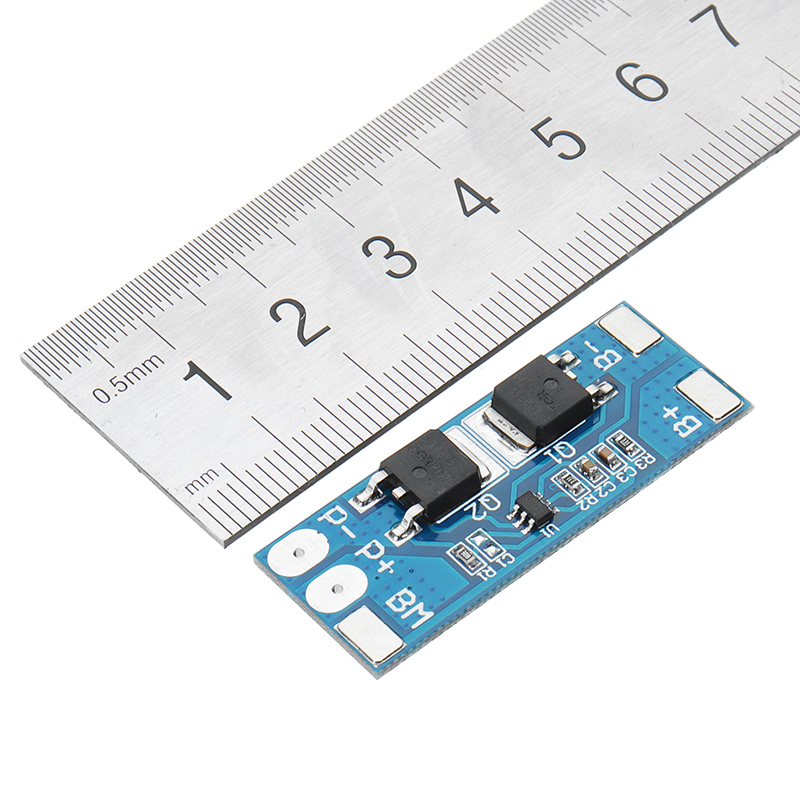

Short circuit protection: protection, charge recoverySize: 38*8*2.6mm

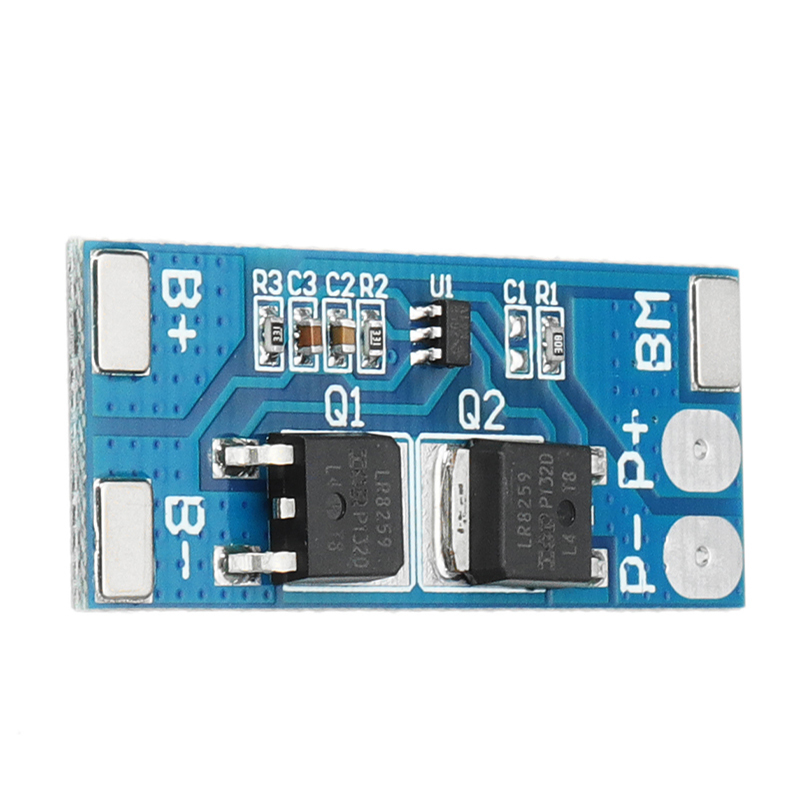

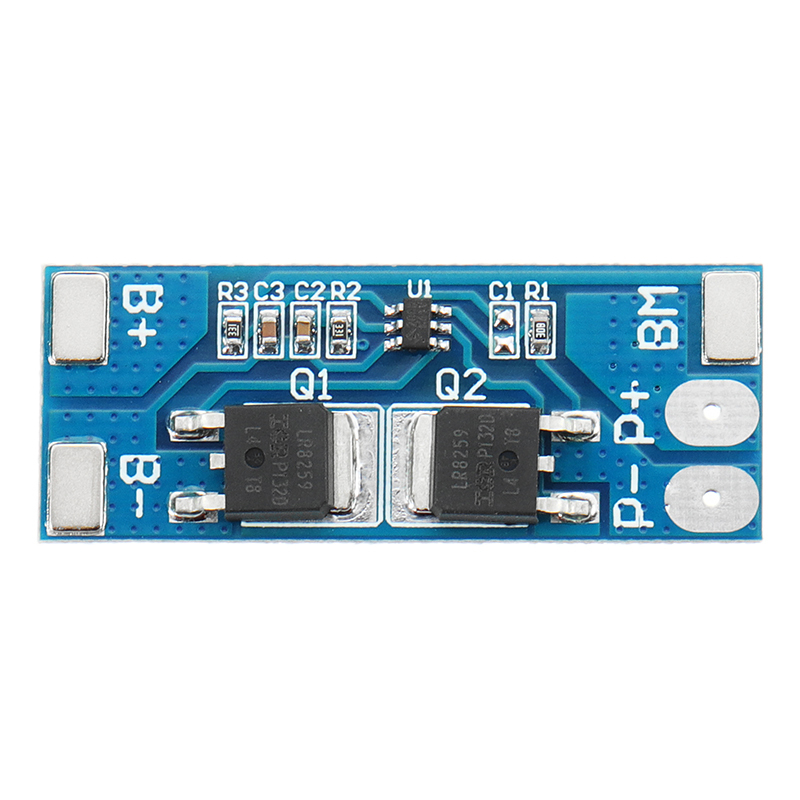

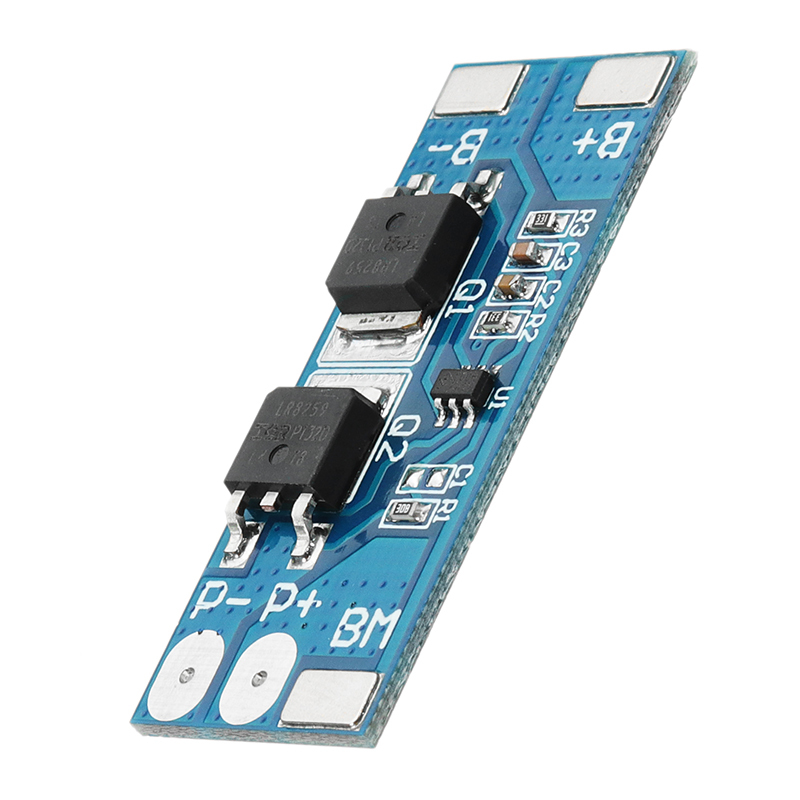

Solder joint description:

B+: Connect the battery positive pole;
B-: Connect the battery negative pole;
MB: Connect the connection point between battery 1 and battery 2;
P+: charging/discharging terminal positive (common terminal/discharge terminal shared);
P-: Connect the negative terminal of the charge/discharge terminal (common to the charge terminal/discharge terminal).

Package included: 1 x 2S 8A lithium battery protection board
