Description
Agricultural spray drone machine 1850mm wheelbase 25L/KG medicine box large load DIY six-axis 25kg plant protection machine frame
Package list:
Option item 1:just frame kit(included frame + landing gear + sprayer parts)
Option item 2:frame kit with hobbywing X9 system power combos
Option item 3:frame kit with DJI E7000 system power combos

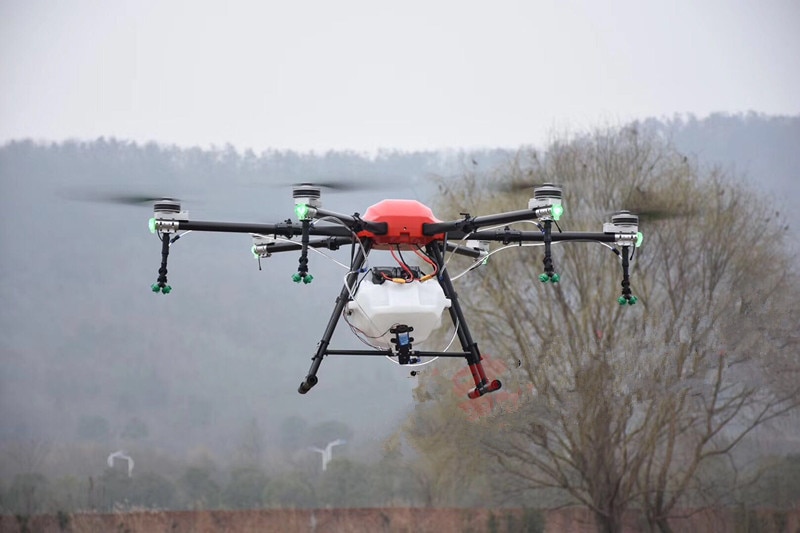

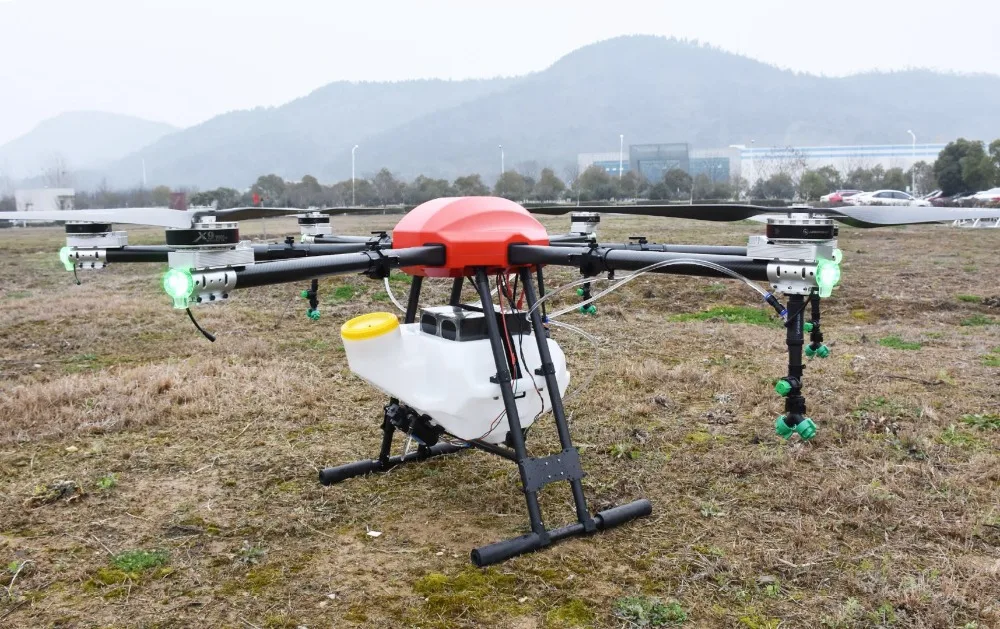

This product is a 25L level waterproof agricultural spraying drone Hexacopter flight platform.wheelbase 1850mm

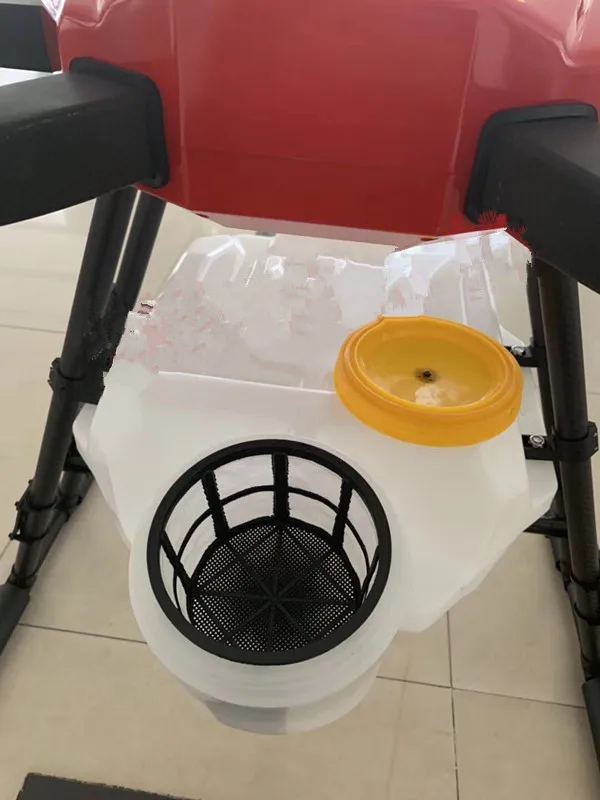

The spray system uses a 12V 4.5L high pressure diaphragm pump, 48V to 12V buck ESC, high pressure atomizing nozzle, 25L level water tank (Max water volume 25L).
Power system with hobbywing X9 power combos. Includes motor, ESC, motor base, 33.9″ propeller
Pure carbon fiber frame and landing gear now!
parameter
3mm aviation board , Wing Arm: 2mm thick square to elliptical shaped carbon fiber tube
Wheelbase: 1850mm
Size: folding 1100x980x750mm
expand (without propellers) 1900x1900x750mm
Working voltage: 44.4V (12S)
Weight (frame + spray + power): 19kg
Load: MAX 25L
Flight speed: 4-8m/s
Spray width: 6-7m
Takeoff weight: >50kg
Propeller size:33-inch/34.7-inch
Pump parameters: 12V, 4.5A, 7L/min
Normal operation spraying time: 9-12 minutes
Working efficiency: 20-25 acres / sort
Advantages of the frame: high-strength central structure design, shaped square to elliptical carbon fiber tube, reducing frame vibration, strengthening structure, no virtual position, anti-damage. Modular design, quick assembly and easy maintenance.
Recommended configuration:
Flight Control System: DJI N3-A3/JIYI K3-A,K3-A pro, K++
Remote control: DJI/FUAV M12,T12,VD32
Power System: Hobbywing X9 FOC power system combos/DJI E7000 power system combos
Spray system: 25L (MAX 25L) water tank, double high pressure water pump, double nozzle boom x4 pcs
