Description

Features:

1. The product is mainly composed of alloy heating wire and silicone rubber high temperature insulation cloth, it is fast heating, high thermal efficiency.
    Its easy to use, safe, waterproof, service life up to five years, its temperature range is -62-235℃.
2. High insulation performance,  breakdown voltage up to 20-50KV/mm.
3. Heat element: the nickel alloy heating wire wrapped in glass fiber, heating power can reach 2.1W/cm²,  heating more evenly.
4. Pressure-sensitive adhesive maximum temperature: 150℃ continuous, 230℃ instant. (On occasion of power density is less than 0.9W/c㎡)

Specifications:

Size: 40X40CM
Voltage: 220V
Wattage: 750W

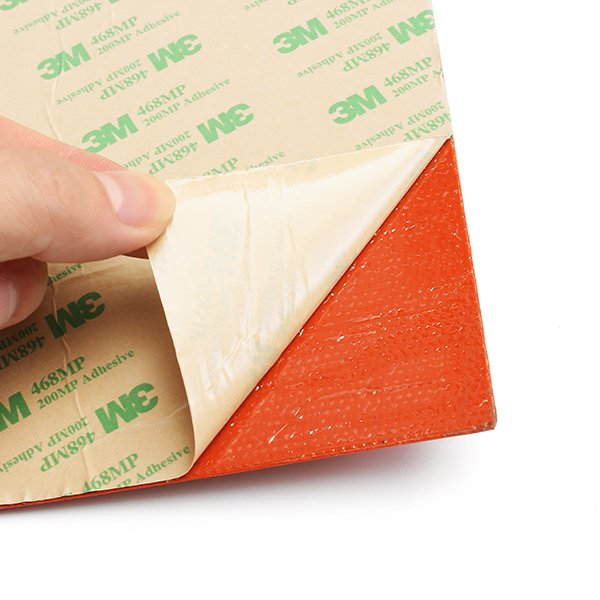

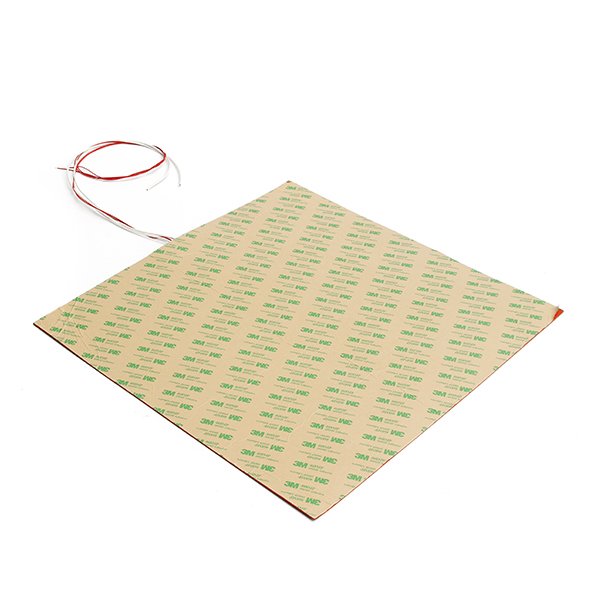

Usage: the back is double-sided adhesive, can be directly attached to the heated products, the plastic can withstand up to 200℃

Note:

1. The use of such electric devices must be noted that the continuous use of the operating temperature should be less than 240℃, instant no more
    than 300℃.
2. Silicone heating device can work and pressure state, that is, with the auxiliary pressure plate to close the heated surface. Good heat transfer, the
    work area temperature does not exceed 240℃, the current density of up to 3W/cm².
3. Under the paste installation conditions, allow the working temperature is less than 150℃.

Package included:

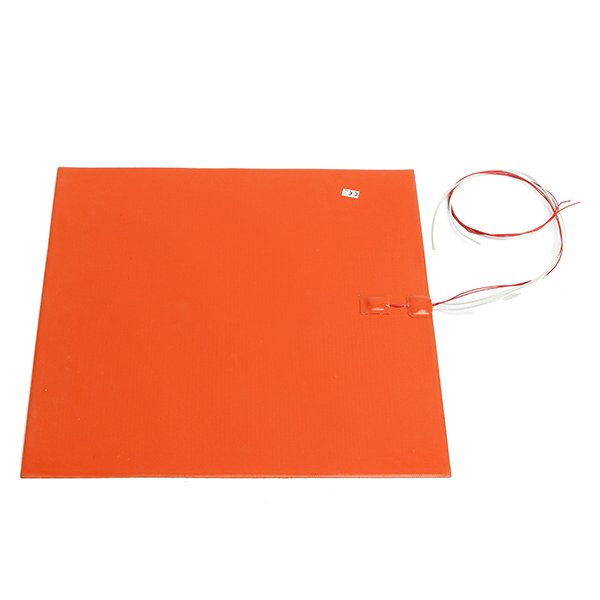

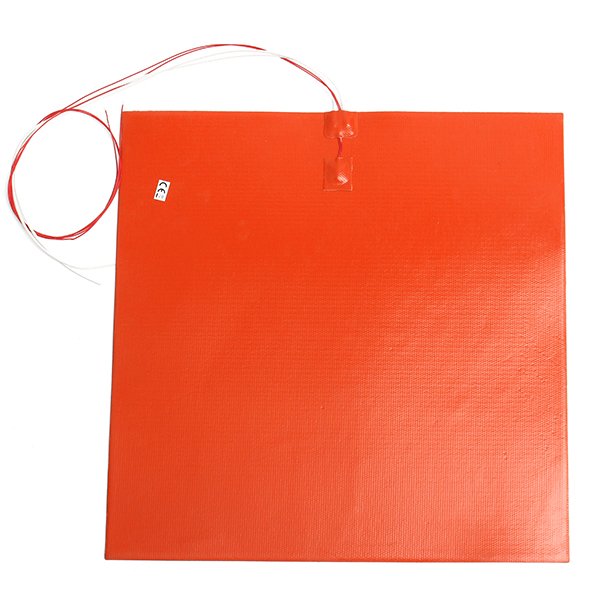

1 x 40X40CM Silicone Heater
