Description
How to choose?
Torque Range:
028A Electric Torque is 0.12NM,suitable for mobile phone/clocks/watches/glass.
028B Electric Torque is 0.3NM,suitable for RC models.
Manual Torque is 3NM.
Specification:
Screwdriver:
Main engine model: GSD-Electric screwdriver
Type: 028A/028B
Color: Luxury Gold/Champagne gold/Black
Mainframe size: 18*165mm
Weighs: 75g
Batch Type: International Standard 4mm General Batch
Power supply: Rechargeable Lithium Battery Power
Battery Type: 14500 3.7V 800mAh
Use Time: Duration 2 hours

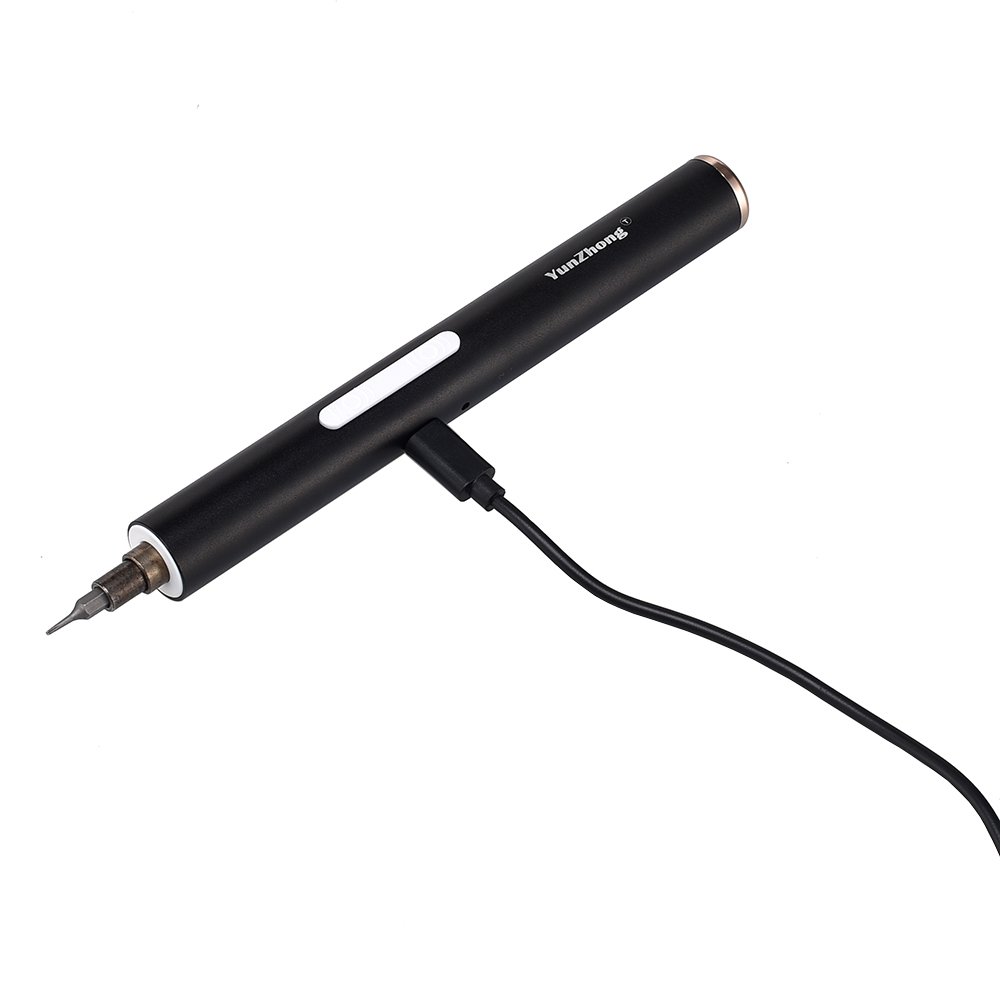

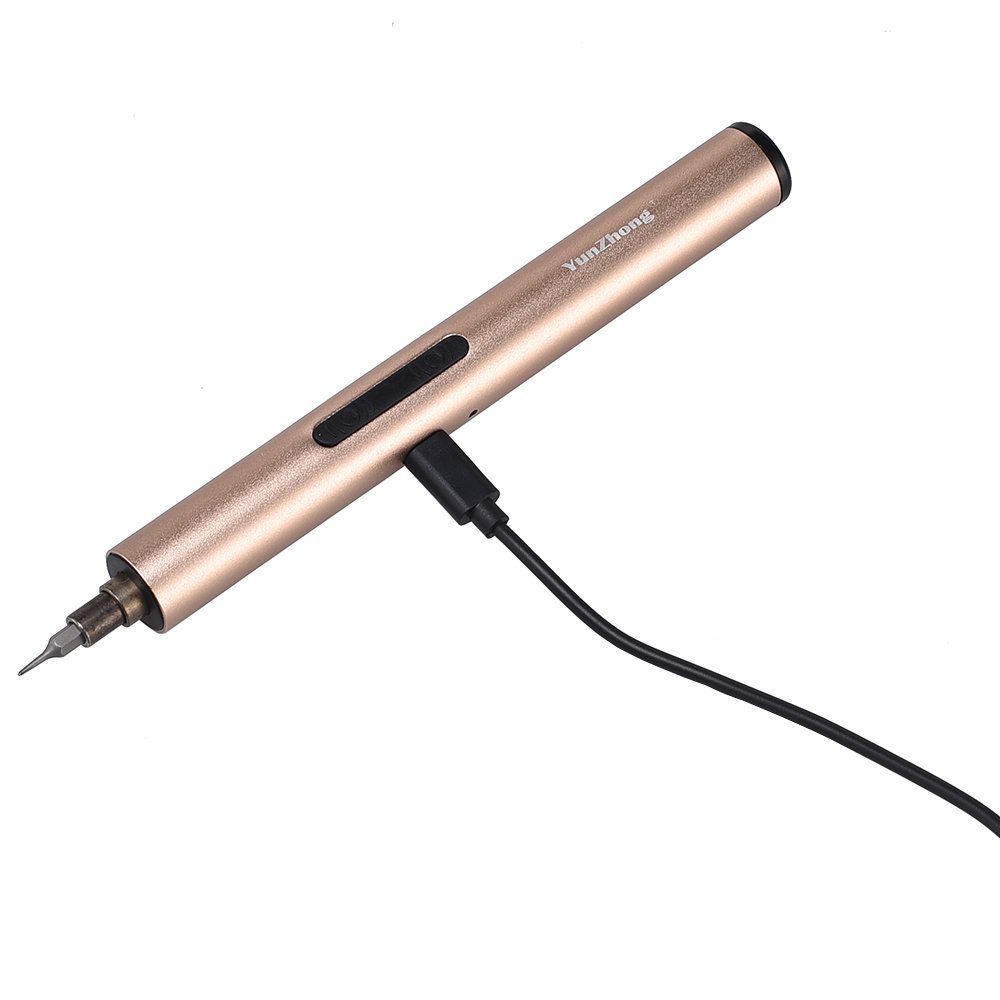

Charging Time: 60 minutes
Idle Speed: 028A 160r / min
028B: 165r / min
Batch:
Cross: PH000 (Cross 1.5) PH0 (Cross 2.0) PH2 (Cross 5.0)
Hyphen: 1.0mm 2.0mm 3.0mm
Six star shape: T5 , T6 , T8 , T8
Five star shape: P2 (five-star 0.8) P5 (five-star 1.2) P6 (five-star 1.5)
Square: SQ0
Triangle: 3.0
Y: Y2.5
U: U3.0
Hexagonal: H1.5H2.0H2.5H3.0
Corresponding batch head roughly detaching range:

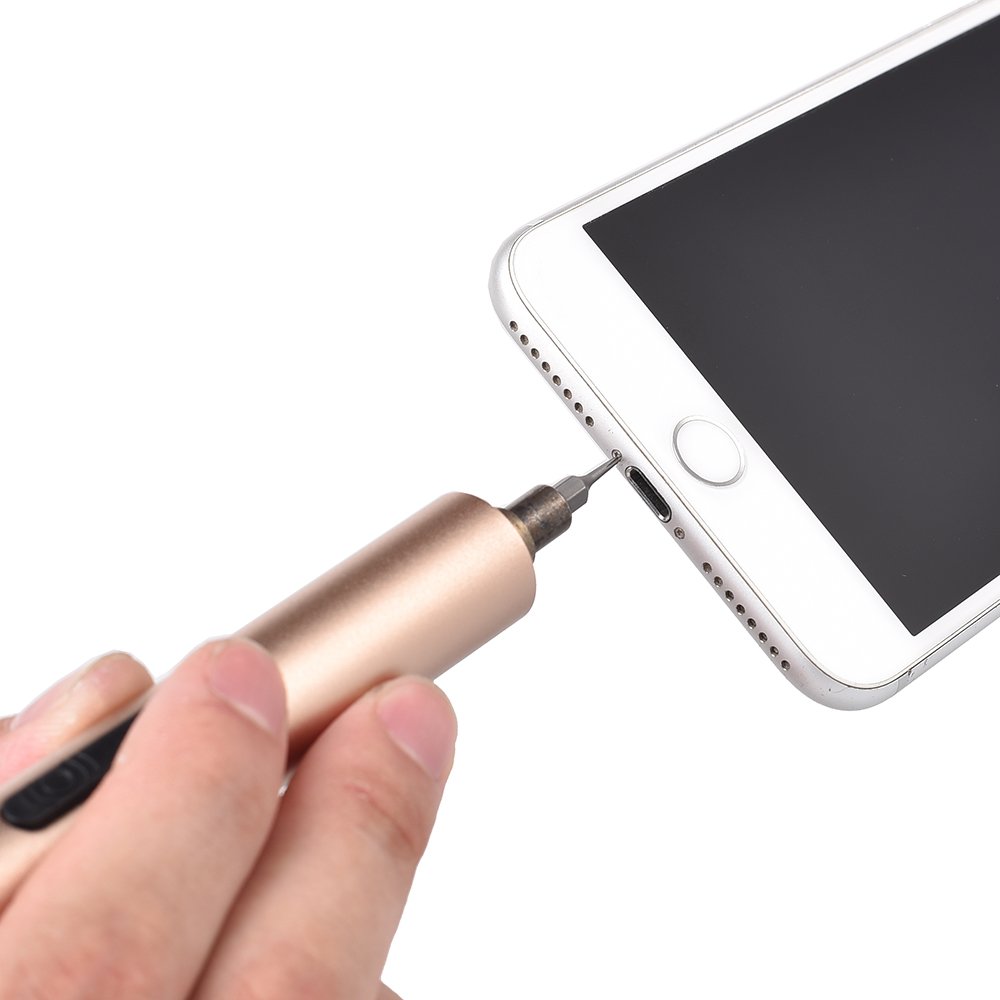

Five-Star 0.8: Remove the bottom five-star screw of the iPhone (4/4s/5/5s/5c/6/6plus/7/7plus/8/8plus/X)
Five Star 1.2: Remove the bottom five-star screw of the .MacBook Pro
PH000 ( cross) 1.5: Remove all phone cross screws.
PH0 ( cross) 2.0 : Remove notebook bottom cross and toy cross usage .
PH2B ( cross)5.0: The desktop computer cross screw.
One Word 1.0 / 2.0 / 3.0: Remove some digital product hyphen screws.
Hexagonal T 5/ T 6: Remove hexagonal screws from some notebooks.
Triangle 3.0/Y2.5: Dismantling small electrical appliances.
Model 028B can be used for model disassembly and repair under no more than 3 NM force.
Note:
1.Hand-to-body design not only can be operated by electric or manual operation, electric and manual can be operated independently, can not operate at the same time.
2.Manual torsion must not be greater than 3 NM, self-disassembly and maintenance is strictly prohibited.
3.Please store the electric screwdriver which is not used temporarily outside the scope that babies and children may touch.
4.Use is strictly prohibited when charging.
5.When using and replacing battery, please replace the battery made by the manufacturer
Packaging included:
1X Electric Screwdriver
1X S2 steel batch heads
1X Box
