Description

Feature:

Strong sound insulation and absorption performance, heat insulation, damping and antisepsis

Specifications:

Size: 200x200x10mm

Proper temperature:
-50℃一 150℃

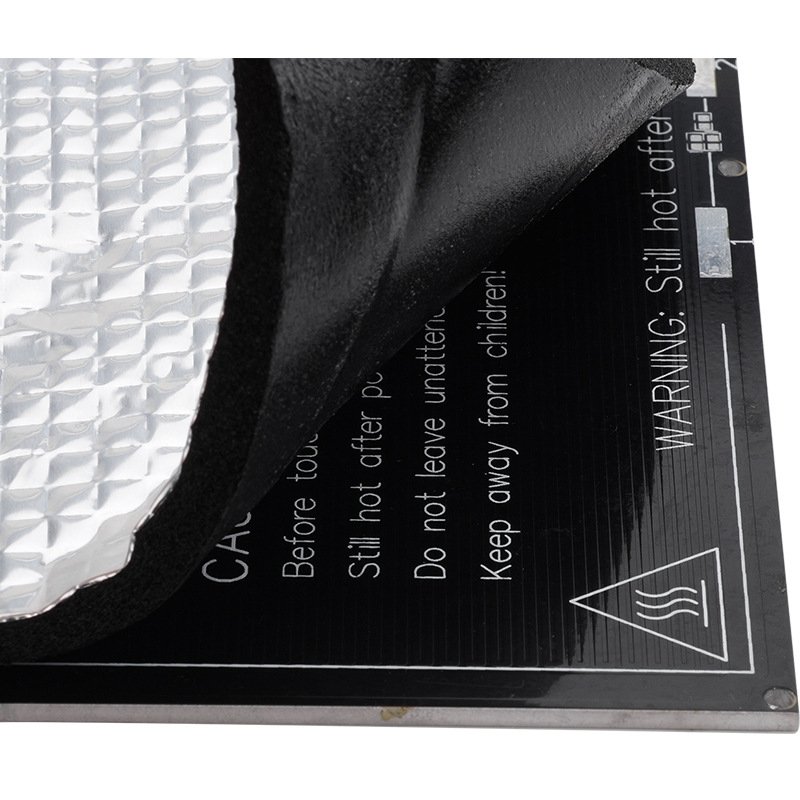

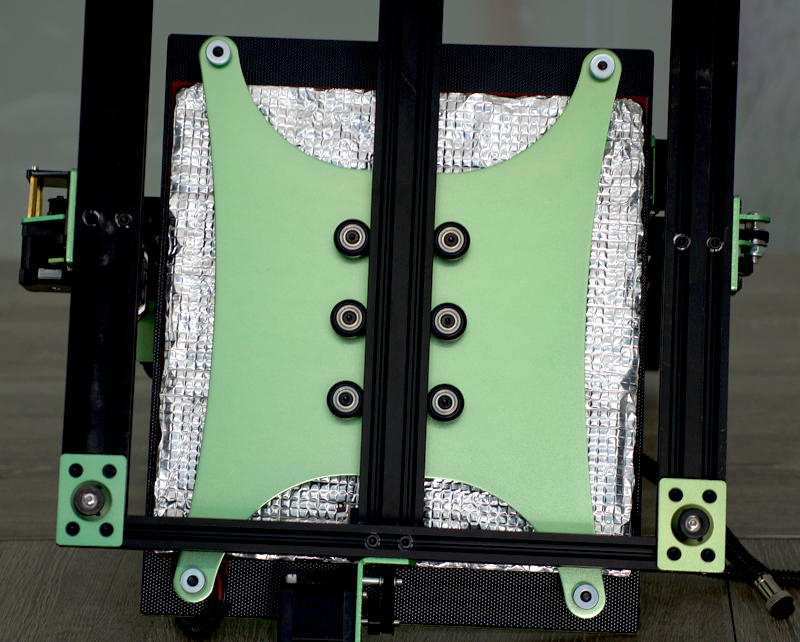

Application: Fit for 220*220/214*214/200*200mm aluminum base plate, PCB heated bed, silicone heated bed bottom

Installation Notes:

1. Please clean the surface you want to paste.
2. Make insulation materials and sheet metal firm fit, and play best adhesive, damping performance
3. Do not cover the chassis wiring or air holes when you installation
4. Appropriate use of adhesive tape will strengthen connections effect

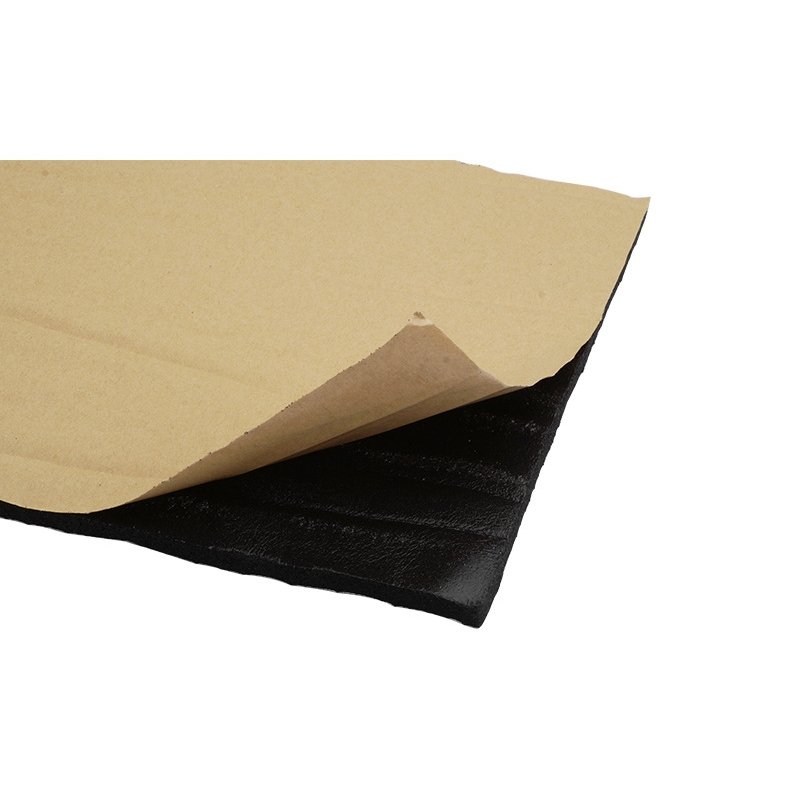

5. Paste Aluminum Soundproof/Damping Plate,you could heat with a hair dryer to make it soft, then compacted by hand. If the room temperature is below 5 degrees Celsius, first with sun lamp heating it until soft. Then remove the wax paper and paste it
6. A successful installation process is best not to repeat tear paste, paste effect won’t be damaged
7. The extra insulation can be pasted in some hidden place

Package Included:

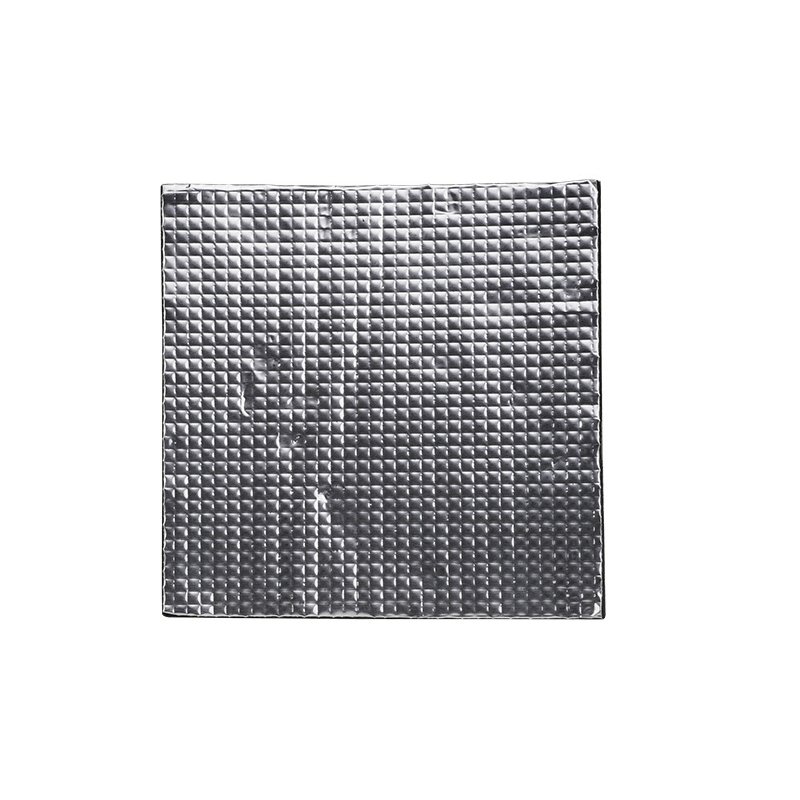

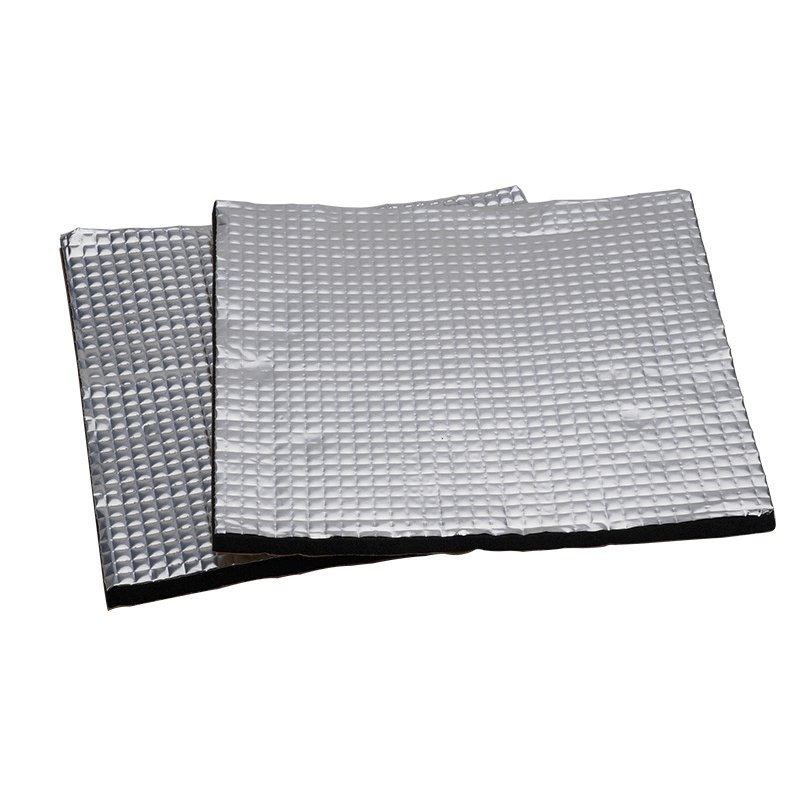

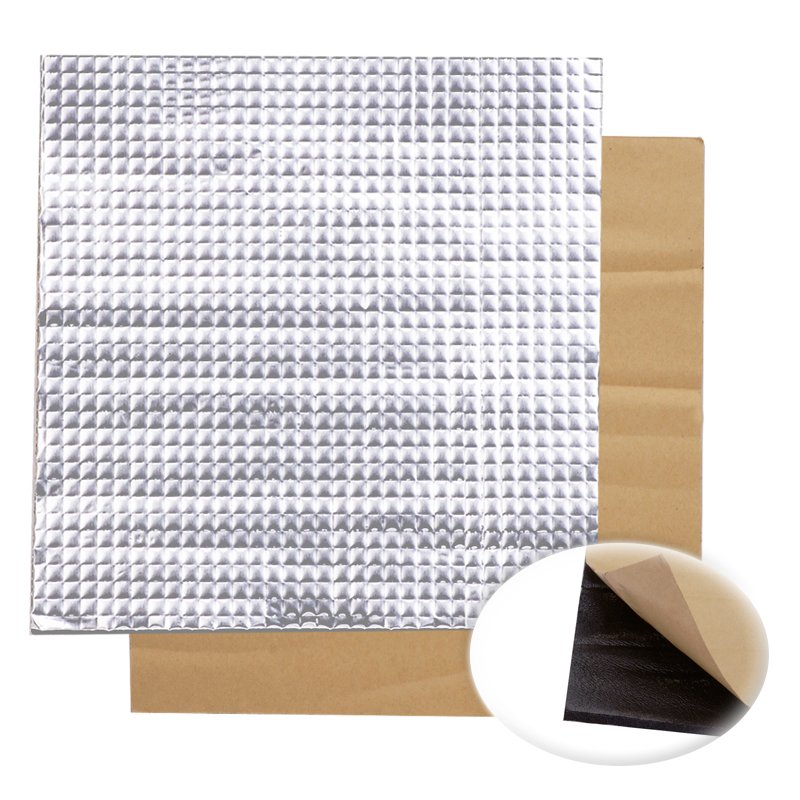

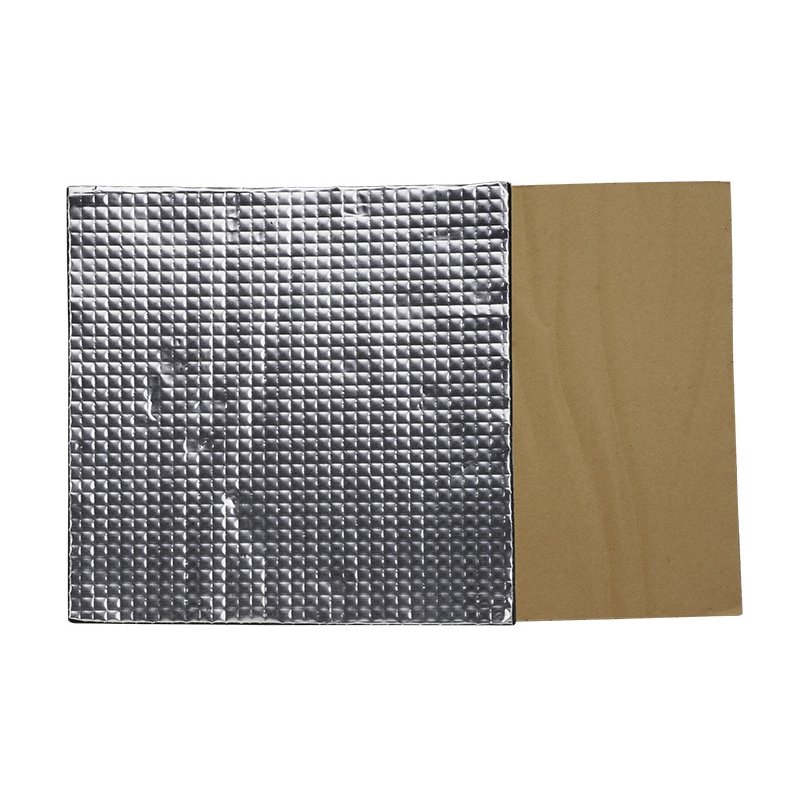

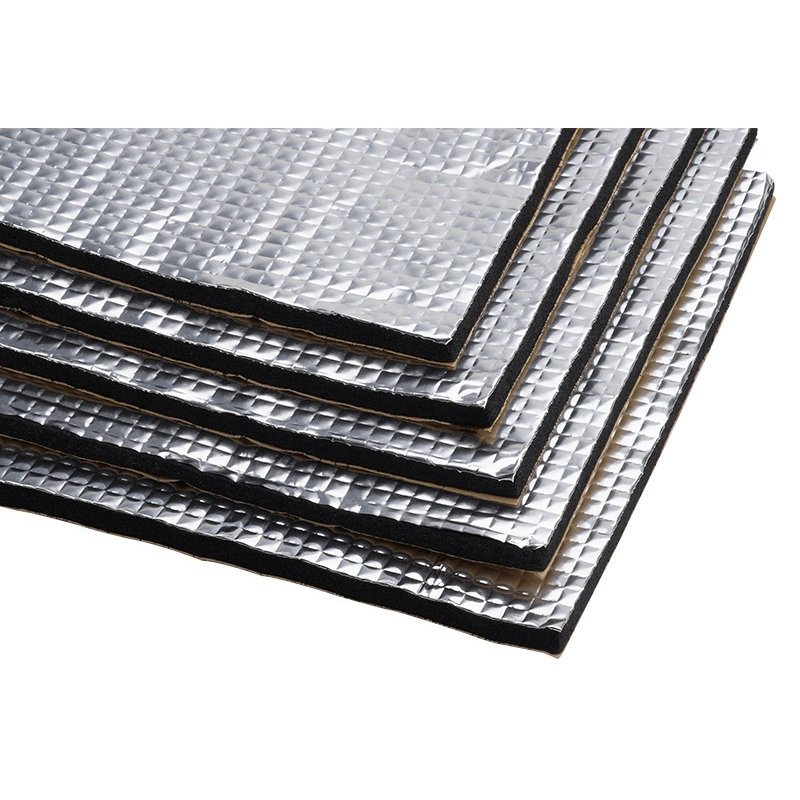

1x 200*200*10mm Heat Insulation Cotton
