19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine

is available on purchases between $10 and $2,000 learn more

This product is currently out of stock and unavailable.

Add to Wishlist
Add to Wishlist
SKU: 19913 Category:

Description

Specification

Material: Molybdenum
Diameter: 19mm/20mm/25mm/30mm
Thickness: approx. 3mm
Shape Tolerance: +0.0/-0.1mm
Thickness Tolerance: ±0.1mm
Surface Flatness< λ/20 @ 632.8nm
Beveling<0.2×45°
Parallelism:<1′
Coatings: HR coating

Wave Length: 10.6um
Reflectivity (λ=10.6μm)≥99.8%

Features

– High reflectivity
– Resistance to wipe
– Adapt to work under harsh environment
– Molybdenum mirror is normally polished, without coating, used for tough environments. it has extremely tough surface.
– This optical element is used for planar reflecting the laser beam and is an important component of the laser system.
– Fits 40W to 150W cutters engravers,it has countless applications, such as Astronomy, Industry, Optical Communication, etc…

Package Included:
1 x Molybdenum Laser Reflective Mirror

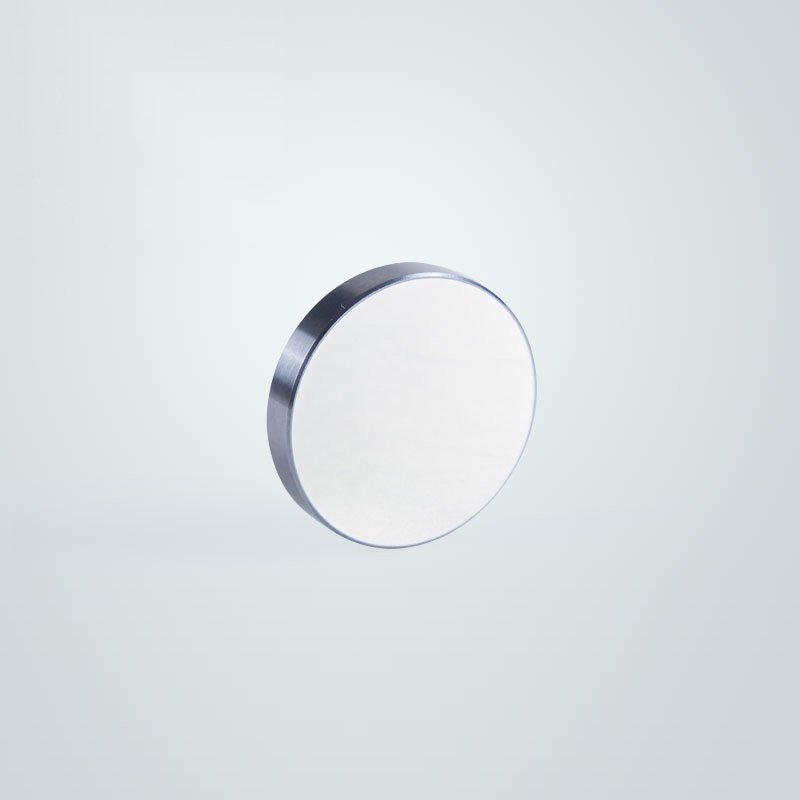

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 1

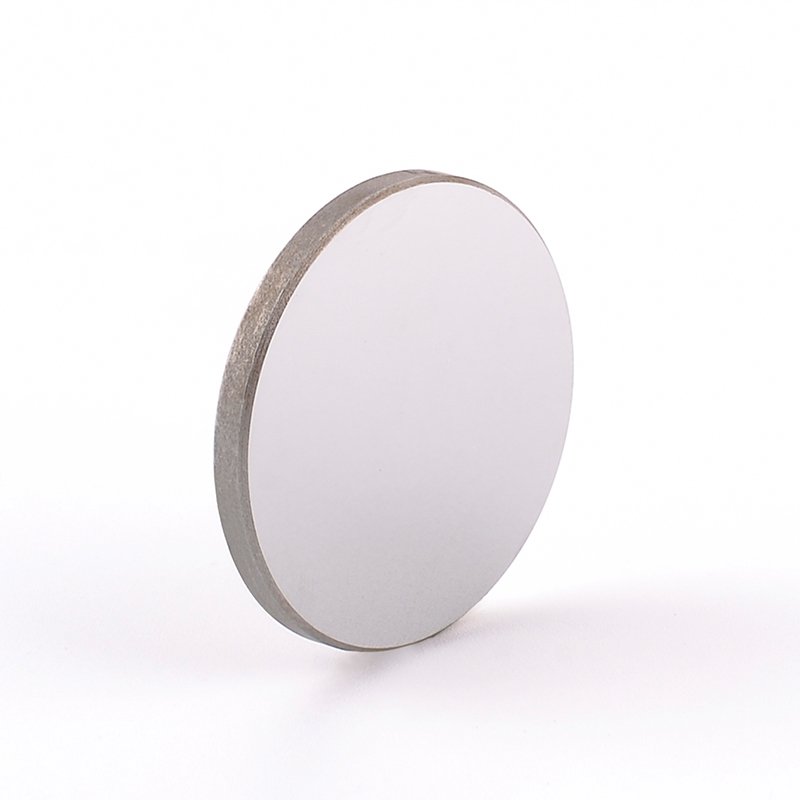

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 2

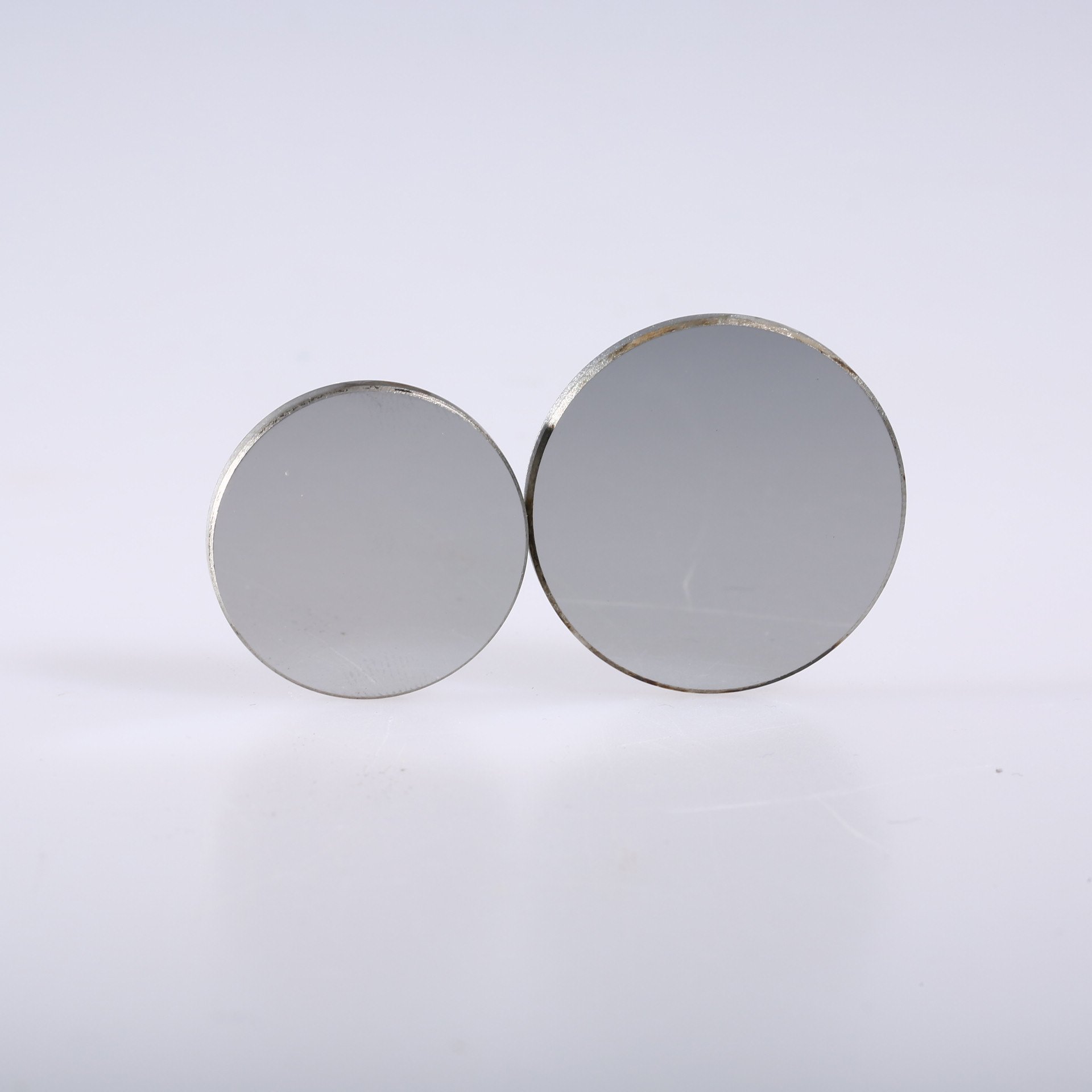

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 3

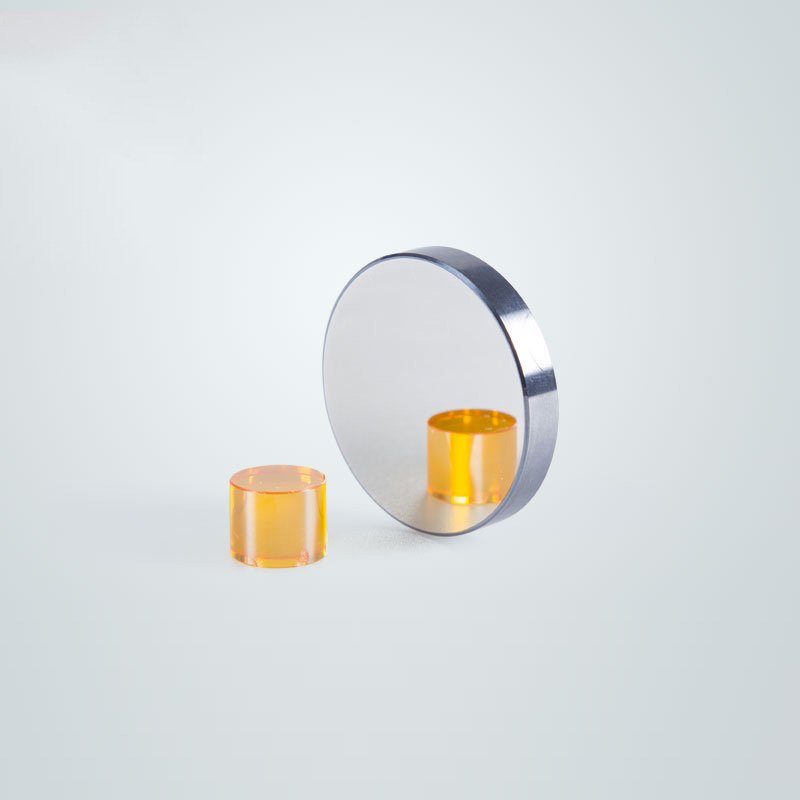

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 4

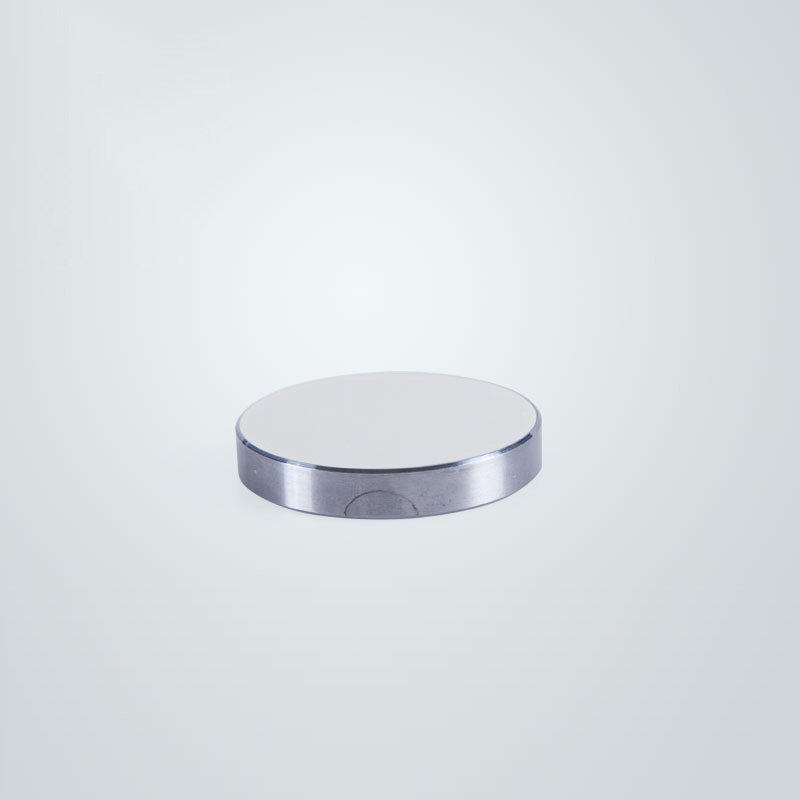

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 5

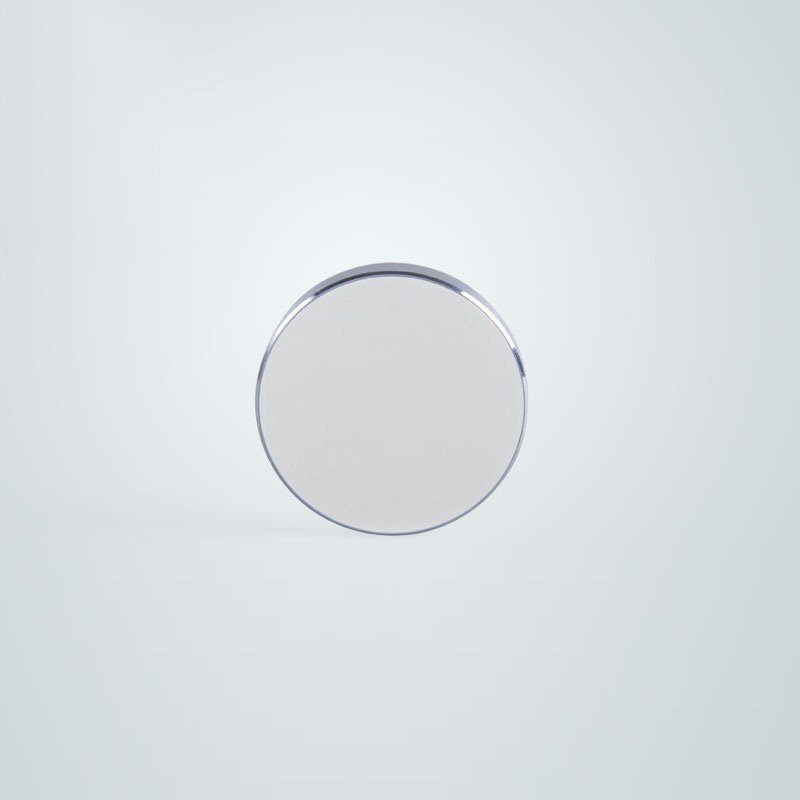

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 6

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 7

19/20/25/30mm Dia Mo Reflective Mirror Molybdenum Reflector Lens for CO2 Laser Cutting Engraving Machine 8

Additional information

Weight 0.02 kg
Size

19mm, 20mm, 25mm, 30mm
