Description

Specification:
Material: Metal
Color: Blue
Size: Approx.165*145*80mm
Input Voltage: AC220V/AC110V; DC300V/DC150V
AC frequency: 47~440HZ
Max Input Power: 440W
Max Input Current: 3A
Max Output Voltage: DC 22kV
Max Output Current: DC 22mA
Efficiency: ≥90% (Full load)
MTBF: ≥10000 Hours
Response Speed: ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Environment: Operating temperature: -10~40℃
Relative Humidity: ≤90%

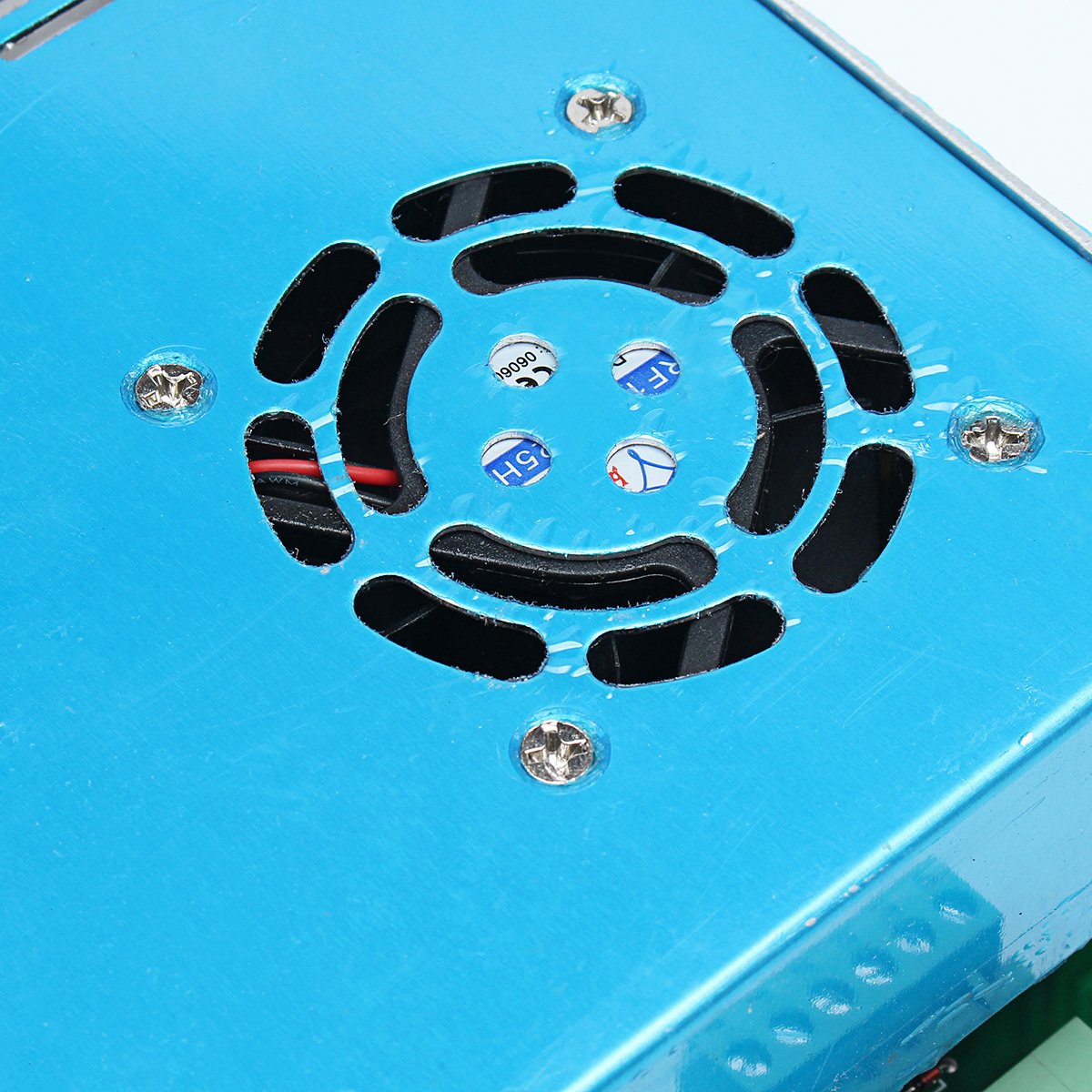

Cooling: Forced air cooling (fan cooling)
Application:
Sculpture and cut acrylic,fabric,double color sheet and rubber etc
Can be applicable to 50W laser tube manufactured by various factories.

Features:
– Quick response speed and effect, high performance,large cutting power, it also can prolong laser tube service life.
– Easy control: the start and stop of laser can be easily controlled by TTL level.
– The power supply has output open circuit protection.
– The power supply has TTL signal indication, water through signal indication and laser output indication.
– This power supply has the Buttonto test output laser manually.

Package Included:
1 x Laser Power Supply
