Description

File download: Click to open

Feature:

Resolution: 128*64
Control chip: SSH1106
Display area: 29.42 x 14.7mm
Driving voltage: 3.3-5V
Operating temperature: -40 ℃ to 70 ℃
Interface type: IIC/I2C  interface

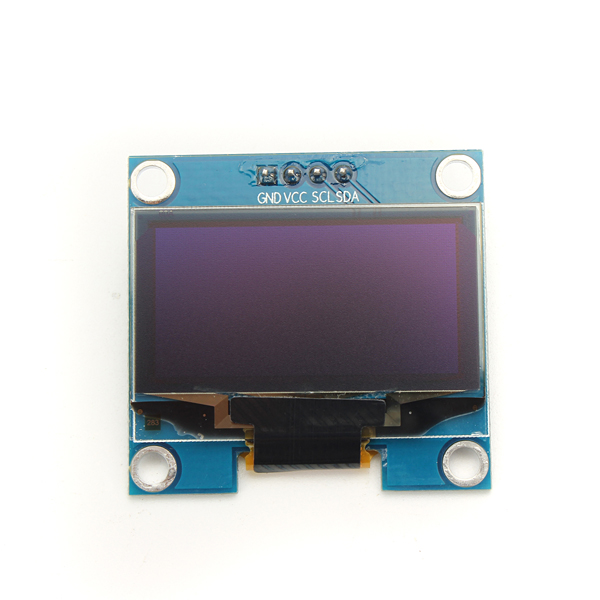

Pin definitions:

1> GND (power ground)
2> VCC (positive power supply)
3> SCL (clock line)
4> SDA (data line)

About control chip SSH1106:

SSG1106 compatible with SSD1306 basic, difference is that SSH1106 control chip RAM space is 132*64, while SSD1306 space is 128*64.
The 1.3-inch OLED 128*64 dot matrix, so in the middle of the screen production took 128 row. When using SSD1306 program point SSH1106 screen, only need to change address to 0x02 row to start.

Package includes:

1 x 1.3 Inch White OLED Module

1.3 Inch 4Pin White OLED LCD Display 12864 IIC I2C Interface Module Geekcreit for Arduino - products that work with official Arduino boards 1, 1.3 Inch 4Pin White OLED LCD Display 12864 IIC I2C Interface Module Geekcreit for Arduino - products that work with official Arduino boards 2, 1.3 Inch 4Pin White OLED LCD Display 12864 IIC I2C Interface Module Geekcreit for Arduino - products that work with official Arduino boards 3

Additional information

Weight 0.007 kg
